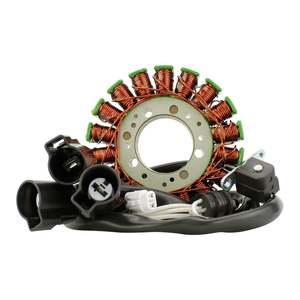

GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

Brand new aftermarket generator stator

- Direct replacement to your original unit
- Plug-and-play direct fit easy installation
- Highest grade lamination materials
- Highest grade copper windings resistant to 200 degrees Celsius.
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested

Dimensions:

- Interior diameter: 42 mm
- Exterior diameter: 115 mm
- Thickness: 23 mm
- Length of wires stator to grommet: 200 mm
- Length of wires grommet to plug: 1020 mm
- Length of pickup coil's wire to grommet: 110 mm

Other specifications:

- Number of wires: 5
- Number of plugs: 4
- Number of holes: 5
- Number of poles: 18

Wire to wire resistance:

- Alternator: White to White = 0.5 ohms -20%
- Pickup: Black to Grey = 512 ohms -20
