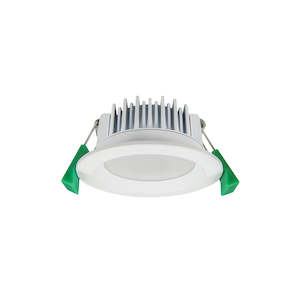

GEO10 - 10W Single Colour Temperature

Use:
• Application - Residential & Commercial use
• Rating - IC-F/IC-4
• Use - Interior
• Warranty - 5 year
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44
•Type - 10W Round Fixed Downlight

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - >0.9

Light output:
• Lamp Type – Integrated LED
• Wattage - 9.8W (including the driver)
• Lumens - 740lm (3K) or 760lm (4K)
• Colour Temperature - 3000K or 4000K
• CRI - >80
• Beam Angle - 90°
• Dimmable - Yes
• Max ambient operating temperature: 45°C

Physical size:
• Dimensions - 82Ømm x 42mmH
• Cut-out - From 65-75Ømm

Product Reference:
• Catalogue 2021 - Page 04
• Catalogue 2022 - Page 85

Note: DALI Dimming available on request. (3K & 4K models only)

Refer DD28 for replaceable driver to extend longevity of downlight
