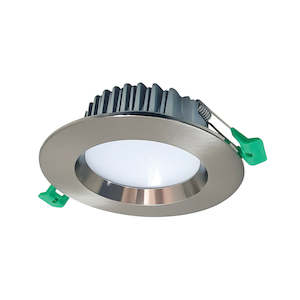

GEO12R - 125mm Front Face Retrofit Downlight

Use:
• Application - Residential & Commercial use
• Use - Interior
• Warranty - 5 Years
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - >0.9

Light output:
• Lamp Type – Integrated LED
• Wattage - 12.2W (including the driver)
• Lumens (CRI - >80) - 1020lm (3000K) - 1060lm (4000K) - 1040lm (6500K)
• Lumens (CRI - >90) - 870lm (3000K) - 900lm (4000K) - 885lm (6500K)
• Colour Temperature - 3000K - 4000K - 6500K
• CRI - >80 / >90
• Beam Angle - 90°
• Dimmable - Yes
• Max ambient operating temperature: 45°C

Product info:
• Type - 12W Retrofit CCT Downlight
• Choose between Warm White (3K), Cool White (4K) & Daylight (6.5K) to suit application use.
• Change the colour temperature using the switch on the driver.
• Material - Aluminium, corrosion resistant A6063 alloy
• Colour - White or Brushed Chrome
• Shape - Round
• Mounting - Recessed

Physical size:
• Dimensions - 125Ømm x 40mmHeight
• Cut-out - From 82-105Ømm
• Rating - IC-F/IC-4
• HCB: 0mm - SCB: 0mm - Height of fitting: 40mm

Product Reference:
• Catalogue 2022 - Page 89

HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.

Note: Brushed chrome models not suitable for exterior use and bathroom

Refer DDT280 for replaceable driver to extend longevity of downlight
