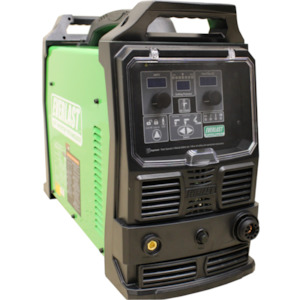

Everlast PowerPlasma 62i with CNC Package

Finally, it is here. The proven PowerPlasma 62i is now available in a CNC only package. This unit comes with all the basics to get started with your Plasma table, including CNC port, and CNC torch. It has the convenience, portability and performance that will meet the needs of everyone from the weekend enthusiast to the welding and fabrication shop operating a small plasma table. The PowerPlasma 62i is built on an inverter platform, making use of IGBT technology to reduce weight, and improve reliability and performance. The unit has plenty of cut capacity with a recommended 3/8" regular cuts, maximum clean-cut capability is up to 3/4" (at reduced speeds). Pierce up to 5/16" for production cutting. The new iPT 60M CNC torch is part of the standard package and features a proven long life Italian design with blow back start, pilot arc and a variety of consumable choices. The PowerPlasma 62i features a 3 second tip saver to reduce premature consumable wear by limiting pilot arc on time, if no cutting is taking place. Features & Benefits:

- Comes with CNC torch (Hand torch not included)
- Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
- Cuts virtually any type of metal with ease
- Simple to use torches with inexpensive service parts and consumables
- Commercial class, 60% Duty cycle at 60 amps for CNC use
- Clean, smooth cuts with the genuine iPTM 60 CNC torch
- Blowback start starts arc without the need of High Frequency which can interfere with surrounding electronics
- Pilot arc improves performance and cutting on dirty, painted, or rusted metals
- 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of contiuous operation if no cutting is present to prevent premature consumable wear
- Front air pressure gauge allows quick verification of air pressure
- Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
- Adjustable postflow timer for maximum consumable life
- IGBT components improve reliability and performance while reducing overall weight
- CNC socket for CNC use on plasma tables with included machine torch
- Suitable for use with 11,000 W "clean power" generators. What's Included:

- IPTM-60 CNC Machine Torch with 24 ft. cable and Euro quick-connect central connector
- Ground Clamp with 25 Dinse connector
- AW2000-02 Air Pressure Regulator/Water Trap (separate air dryer is required to reduce consumable wear and prevent torch damage)
- Consumable starter kit: 5x IPT-60 Electrodes and 5x IPT-60 1.1mm Nozzles/Tips Recommended Areas of Use:

- Home shop
- Automotive/muffler shops
- Motorsports
- Commercial fabrication
- Factory maintenance
- Shipyards
- Pipelines
- HVAC
- CNC Recommended Metals:

- Steel
- Stainless
- Aluminum
- Copper
- Titanium
- Nickel/Nickel alloys
- Virtually any metal including cast iron Type: IGBT Voltage/phase: 220/240 V 1 Phase Output Amp/Volt Range: 20-60A; 88-104V OCV: 240V Max Inrush (I1MAX) Amps: 41A Maximum Rated (I1EFF) Input Amps: 32.4A Duty Cycle At Rated Amps/Volts:

- 60% @ 60A/104V
- 100% @ 50A/100V Arc Start Type: Blow Back (Piston type) PilotArc: Yes Torch Type: Italian designed iPT 60 CNC machine torch CNC Interface Port: Yes Adjustable Post Flow Timer: Yes Gouging: Light to Medium Recommended Cutting Air Pressure: 75 psi Recommended Compressor Capacity: 6CFM @ 90 psi/ 30-gallon tank OK-to-Cut Indicator/Low Air pressure safety: Yes
Minimum/Maximum:

- Up to 3/8" daily use with CNC (rated for best speed and quality)
- Up to 3/4" clean cut with CNC (edge start)
- Up to 1" severance @ 3-5 ipm
- Pierce up to 5/16" (Recommended to use an edge start for thicknesses 3/8" and above)

Plasma CNC capacity is affected by several factors. Ideal cutting conditions require dry air, new consumables, proper air pressure,. Capacity is reduced when cutting CNC due to several factors, including duty cycle, starting cut, higher cutting speeds demanded. Quality of cut depends upon consumable orifice size, standoff height, and travel speed. Notes:

To improve consumable life and prevent torch damage, the customer must supply and install a separate air dryer inline in addition to the regulator/water trap supplied by Everlast. The water trap Everlast supplies with the unit is not designed to remove all moisture from the air.

CNC torch included. Hand torch not included in this package but may be purchased separately.

If operating on a generator, the generator must be certified by its manufac
