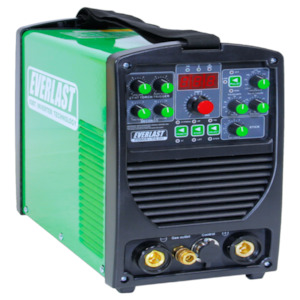

Everlast Power i-TIG 201
If you are looking for a professional level DC TIG/Stick welder, the offers unparallel features in an economical DC welder. The unit is fully featured, offering both high frequency start and lift start capability. When compared to other DC TIG/Stick welders, on the market, the Power i-TIG 201 competes favourably with similar welders in its class such as Invertec and Maxstar models at just a fraction of the cost. This unit, a replacement for the popular Power i-TIG 200, is widely used by professionals in specialty trades where heat control is important, such as gun smithery, or stainless fab shops, because of its low amp start capability of just 5 amps and pulse feature which precisely controls the heat. The new DC Power i-TIG 201 definitely retains the analogue feel of the original Power i-TIG 200. However, because it now incorporates digital control of the parameters, the result is a simplified internal plug and play design which helps to ensure reliability. Yes, the unit still retains all of the features of the Power i TIG 200 so if you are person who likes to have controls that you can eyeball and touch, it is likely to be a perfect fit in your shop. Features & Benefits:
- Digital IGBT Inverter design incorporates simple analog look and feel
- TIG output of 200A @ 35% Duty Cycle operating on 240V
- TIG output of 125A @ 35% Duty Cycle operating on 240V
- Dual Voltage capability allows unit to be used with 120V or 240V single phase service
- Pulse function with fully adjustable parameters up to 250Hz
- Digital display for accurate setting of amps.
- Features Lift start and High Frequency modes for DC welding
- 160A Stick weld function with arc force control can be used with welding electrodes such as E6011, E7018, and E7014 (Not E6010 capable)
- 35 Series DINSE-style connectors
- Consumable Starter Kit (Tungsten not included) What's Included:
- 26 series Air-Cooled TIG torch with 12.5 ft. cables and 35 Dinse connector
- Torch Switch for 2T/4T operation
- Stick Electrode Holder with 10 ft. cable and 35 Dinse connector
- Ground Clamp with 10 ft. cable with 35 Dinse connector
- Argon Regulator with Hose
- Consumable Starter Kit (Tungsten not included)
- Adapter 120V/240V
Specifications:
- IGBT Type: Individual IGBT
- Inverter Type: Digital/Micro-controlled
- Output Type: DC Stick, DC TIG
- Voltage/phase: DUAL VOLTAGE 120/240 1 PHASE
- Max Rated TIG Amps: 200 Amps
- Max Rated Stick Amps: 160 Amps
- TIG Amps @ Rated Duty Cycle: 120V: 125A/ 15V @ 35% Duty Cycle/40º C
- 240V: 200A/ 18V @ 35% Duty Cycle/40º C
- Stick Amps @ Rated Duty Cycle: 120V: 100A/24V @ 35% Duty Cycle/40º C
- 240V: 160A/26.4V @ 35% Duty Cycle/40º C
- Max Inrush (I1MAX) Amps: 120V: 31.2A, 240V: 27.5A
- Maximum Rated (I1EFF) Input Amps: 120V: 19A, 220V: 17A
- OCV: TIG: 70V, Stick: 70V
- TIG Output Range DC: 120V: 5A-125A/10.2V-15V, 240V: 5A-200A/10.2V-18V
- TIG Output Range AC: N/A
- Stick Output Range DC: 120V: 5A-100A/ 20.2V-24V, 240V: 5A-160A/ 20.2V-26.4V
- Stick Function: Adjustable Arc Force Control
- Stick Hot Start Type: Auto Adaptive Hot Start
- 6010/Cellulose Capable: Limited to 6011
- Minimum Amp DC TIG Start: 5A
- Minimum Amp AC TIG Start: N/A
- TIG Start Type: HF/Lift TIG
- TIG Start Type: HF and Lift Start
- Memory: No
- Start Amp Range: Not Adjustable/ Pre-Set
- End Amp Range: Not Adjustable/Pre-Set
- Upslope Time: 0-5 Seconds
- Down Slope Time: 0-5 Seconds
- Preflow time: 0-5 Seconds
- Post Flow Time: 0-25 Seconds
- TIG Pulse: Yes
- Standard DC Pulse Frequency:.2-250Hz
- Pulse Time On (Duty Cycle): 10-90%
- Pulse Amp Range: 5-95%
- Remote Control: 2T/4T
- Foot Pedal: Optional Minimum/Maximum:
- Weld steel to a maximum of 5/16" single pass (240V)
- Weld steel to a maximum of 3/16" single pass (120V)
- Weld steel to a maximum of 1/2" multi-pass(240V)
- Weld steel to a maximum of 3/8" multi-pass (120V)
- Weld to a minimum of.007" Steel
Stick
- Weld with a maximum of 3/32" diameter electrode depending upon type and brand (120V)
- Weld with a maximum of 1/8" diameter electrode. 5/32 possible depending upon type and brand (240V)
- Weld with a minimum of 1/16" diameter electrode (120V/240V)
- This unit not rated for E6010 use. NOTE: The Power i-TIG 201 is DC output only. It is not recommended for aluminum welding.
Specifications, style and appearance of accessories are subject to change without notice.
