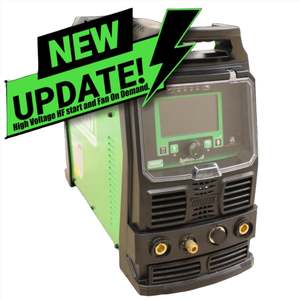

Everlast Typhoon 230 AC/DC TIG & Stick Welder
The Everlast Typhoon 230 is a next-generation AC/DC TIG and Stick welder, engineered for fabricators who want maximum performance, consistent control, and superior weld quality. Built with advanced digital IGBT inverter technology, this machine delivers exceptional results on aluminium, stainless steel, chromoly, mild steel, and all general fabrication work.
A massive 70% duty cycle at maximum output, combined with a large 7" HD LCD colour screen, gives fabricators a clear advantage in both workshop and production environments. The simplified single-page interface shows all settings at once with no hidden menus, making setup fast, intuitive, and repeatable — ideal for busy workshops or multiple users.
With five AC waveforms, independent AC amplitude control, AC/DC pulse, split-wave shaping, and true low-amp starts, the Typhoon 230 offers unmatched aluminium welding performance in its class. It also excels as a Stick welder with AC/DC modes, excellent 6010 and 7018 performance, hot start, and arc force control — perfect for on-site repairs and heavy fabrication work.
Dual-voltage capability, Power Factor Correction, advanced fan/cooler control, and a 30-program memory with lockout make the Typhoon 230 a reliable choice for workshops, mobile welders, motorsport fabricators, and production teams across NZ.
Features & Benefits
Advanced digital IGBT inverter design
Massive 70% duty cycle at maximum TIG & Stick output
230A AC/DC TIG output, 200A Stick output
Large 7" HD LCD colour screen with single-page layout
All settings visible at a glance — no hidden menus
Five AC waveforms: Advanced Square, Soft Square, Trapezoid, Triangle & Sine
Independent EN/EP amplitude control for superior aluminium puddle control
Split AC wave shaping for cleaner, deeper aluminium welds
DC wave shaping DC pulse up to 999.9Hz
AC pulse up to 400Hz
Advanced AC/DC mixed pulse for aluminium penetration equivalent to 350A machines
True low amp starts: 2A DC / 3A AC
Solid-state HF/HV start (no points to adjust)
Adjustable hot start and arc force (dig) for Stick welding
Excellent 6010 and 7018 performance
Power Factor Correction for stable generator use & reduced power draw
Dual-voltage 120V/240V compatibility
F.A.C.C.T fan & cooler control technology
30-program memory with lock function for WPS consistency What's Included:
- NOVA Rigid-Neck 9 series Air-Cooled TIG Torch with 12.5 ft. cables, Torch Switch and 35 DINSE connector
- NOVA Rota-Flex 20 series Water-Cooled TIG Torch with 12.5 ft. cables, Torch Switch and 35 DINSE connector
- Heavy Duty Stick Electrode Holder with 10 ft. cable and 35 DINSE connector
- Ground Clamp with 10 ft. cable and 35 DINSE connector
- RH-191 Ar/Mix gas Flowmeter CFH with Hose
- NOVA Foot Pedal TIG 7 Pin with 25 ft. cable
- 6 ft. power input cable with plug
- Consumable Starter Kit (tungsten not included)
- Cooler and Cart NOT included
Specifications:
- IGBT Type: Module IGBT
- Inverter Type: Digital/Micro-controlled
- Output Type: AC/DC TIG, DC Stick
- Voltage/phase: DUAL VOLTAGE 120/240 1 PHASE
- Max Rated TIG Amps: 230A
- Max Rated Stick Amps: 200A
- TIG Amps @ Rated Duty Cycle: 240V:
- 230A/19.2V @ 70% Duty Cycle @ 104°F (40°C)
- 200A/18V @ 100% Duty Cycle @ 104°F (40°C)
- Stick Amps @ Rated Duty Cycle: 240V:
- 200A/28V @ 70% Duty Cycle @ 104°F (40°C)
- 160A/28.4V @ 100% Duty Cycle @ 104°F (40°C)
- Max Inrush (I1MAX) Amps: 240V: 32A
- Maximum Rated (I1EFF) Input Amps: 240V: 27A
- OCV: TIG: 90V - Stick: 83V
- TIG Output Range DC: 240V: 2-230A/10.1-19.2V
- TIG Output Range AC: 240V: 3-230A/10.2-19.2V
- Stick Hot Start Amps: 0-100%
- Stick Function: Adjustable Arc Force Control
- Stick Hot Start Type: Adjustable Hot Start
- Stick Hot Start Time: 0-2.0 Seconds
- 6010/Cellulose Capable: Yes
- Stick Output Range DC: AC or DC 240V: 10-200A/20.4-28V
- Minimum Amp DC TIG Start: 2A
- Minimum Amp AC TIG Start: 3A
- TIG Start Type: HV/HF (Solid State Capacitive Discharge), Lift with Remote and Live Lift
- TIG Start Type: Solid State HF and Lift Start
- Memory: Yes
- Start Amp Range: DC: 2-230A - AC: 3-230A
- End Amp Range: DC: 2-230A - AC: 3-230A
- Upslope Time: 0-30 Se
