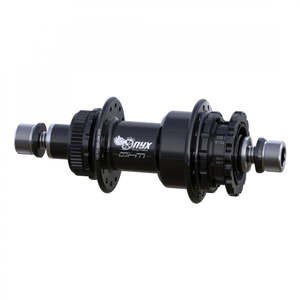

Onyx BMX OHM Race Spec Hub Set

and Drawings SKU: 099083 A - Hub Center To Flange Center, Non-Drive Side (mm) 21.65 B - Hub Center To Flange Center, Drive Side (mm) 27.87 C - Axle Width (mm) 110 Spoke Hole Circle Diameter, Drive Side (mm) 47 Spoke Hole Circle Diameter, Non-Drive Side (mm) 42 Spoke Hole Counts Available 28 Specs Weight (Steel) 11.8 oz / 335 g Dimensions - Approximate for Shipping 9.5 × 4.5 × 4 in Hub Type

Rear Axle Width - mm

110 Axle Diameter - mm

10 Spoke Count

28 Attach Style

Bolt-on Hub Shell Style

Solid Hub Shell Flange Type

J-Bend Bolts

Stainless Steel Disc Brake Rotor Mount

Shimano® Center Lock Driver Style

Shimano Hyperglide® Spoke Tension - Max kgf

120 Product Line

Classic

The Onyx Helix front hub is arguably the highest quality hub on the planet.
Unique cut-outs in the hub shell are not only aesthetically pleasing but save weight without sacrificing strength. Making the Onyx Helix front hub the number one choice of the pros.

- Mini CNC Machined 7075 Aluminum body
- Hybrid-Ceramic bearings
- 28h or 36h
- 10mm Stepped 7075 Aluminum Axle 8mm with Titanium BTR bolts
- Weight: 165g
Tightening axle bolts more than 12NM will void the warranty
