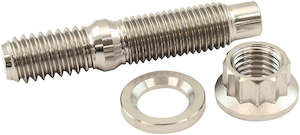

Aeroflow 5/16" Titanium Stud, Nut and Washer Kit Sold as One Stud, One Flat Washer and One 12 Point Nut (AF55-3003)

5/16" TITANIUM STUD WASHER NUT

Sold as One Stud, One Flat Washer and One 12 Point Nut

Part Number: AF55-3003

Aeroflow Performance titanium studs are 45% lighter and stronger than your regular steel stud and nut combo you find at your local bolt shop. The high strength and super lightweight Titanium 6Al-4V grade 5 studs are the perfect replacement for turbo manifolds, exhaust headers or intakes. The use of factory OEM bolts and studs they can result in stripped or broken bolts and inadequate clamping force, resulting in leaks. Aeroflow Performance titanium stud and locking nut combo incorporates a hex key tip that allows them to be easily installed using an Allen wrench.
Sold in one kit of 1 stud, 1 nut and 1 washer.

Specifications: Stud
Stud Size Thread: 5/16"-18 (UNC)
Total Length: 1.77" (45mm)
Allen Key: 3mm
Short Thread Length: 0.574" (14.5mm)
Long Thread Length: 0.803" (20.5mm)
Washer Size
Outside Diameter: 18.5mm
Inside Diameter: 8.3mm
Thickness: 3mm
Nut Size
Thread: 5/16"-24 (UNF)
Height: 8mm
Flange Diameter: 0.526" (13.3mm)
Socket Size: 3/8
Total Weight: 11 Grams
