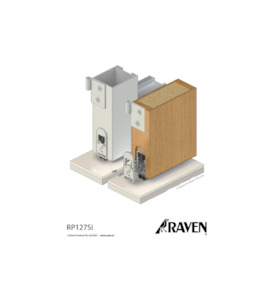

RP127Si Automatic Door Bottom Seals

An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed, featuring extruded silicon gaskets for medium temperature smoke applications. It is operated automatically by pressure on the door jamb by its adjustable strike. It is self levelling. Product Specifications Location Fully morticed into the bottom of single and double Solid core butt hinged doors (minimum door thickness of 40mm). For double doors, plain meeting stiles are required. Can also be fitted into the bottom rail of a metal door by the fabricator. Size/Length (Length can be cut back to) 600mm (305mm), 820mm (600mm), 920mm (820mm), 1070mm (920mm), 1220mm (1070mm), 1500mm (1220mm) Fixing Fully Morticed, Screw Fixed

Colour matched escutcheon plates and zinc plated, cross recess head S.T. screws supplied. Min & Max Gap 3mm to 14mm Replacement Seals RP3126Si Available Colours Black Anodised, Silver Anodised Material Aluminium

Anodised aluminium with silicon rubber (SE) gasket.

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm. Door/Frame Construction Timber, Aluminium
