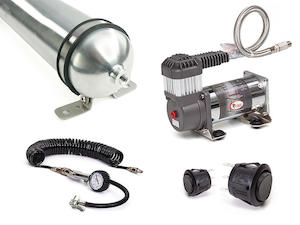

Dual Rocker Air Control Kit with 1 Gallon Air Tank and Heavy-Duty Compressor

This modular air control kit is a convenient system easily added to existing air suspension products or as part of a full Airbag Man package. Usage

This system lets you inflate or deflate two air springs individually at the touch of a switch. It provides adjustment for front to rear and side to side levelling and comes equipped with tyre inflation. Includes:

Air Compressor: High-quality, heavy-duty air compressor

- 12-volt Air Compressor suits airbags and tyres
- 200PSI Working Pressure
- 50% Duty Cycle, 76 LPM / 2.7 CFM @ 0PSI, Max Amp Draw 35 Amps
- Dimensions: 155mm L x 81mm W x 124mm H
- Space Required (open at one end for ventilation): 205mm L x 81mm W x 174mm H

Air Tank: Lightweight Aluminium Air Tank

- 1 Gallon / 4 L Seamless aluminium air tank
- SAE J10 approved, no corrosion
- Max Working Pressure 200PSI
- Pressure tested to 1000PSI
- Dimensions: 605 mm L x 100mm D x 126mm H (with mounting legs attached)

Control Panel: Dual Rocker Airbag Control

- Airbag Control Switches for inflate and deflate
- Required 20mm notched hole and tyre inflation wand 7.5m / 25

Fittings Kit
