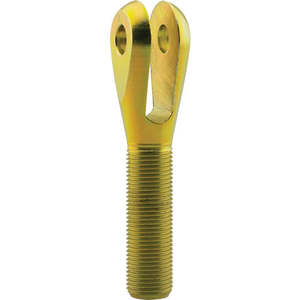

Clevis

- LOW CARBON STEEL
- ZINC PLATED
- CHROMATE TREATED PART
NUMBER BORE
x
THREAD B
DIA D
DIA T
WTH A
LGTH C
LGTH S
SLOT N
THD REF.0025
-.0005.010
-.010.005
-.005.015
-.015.062
-.031.005
-.005 UNF
3A CV1 3/8 x 5/8.3750 1.125.825 3.375 2.000.375 5/8-18 CV2 1/2 x 5/8.5000 1.125.825 3.375

2.000.375 5/8-18 CV3 3/8 x 3/4.3750 1.125.825 3.375 2.000.375 3/4-16 CV4 1/2 x 3/4.5000 1.125.825 3.375 2.000.375 3/4-16 CV5 3/8 x 1/2.3750.875.655 3.012 1.700.250 1/2-20 CV8 9/16 x 1/2.5625 1.125.875 5.563 3.900.250 1/2-20
