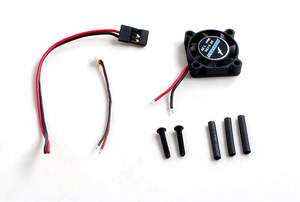

Hobbywing ESC Fan for EZRUN 25-35-60A 5V

1.1 Input: 7-12cells NiMH or 3-4S LiPo.class=Apple-converted-space>
1.2 Size: 24.5mm(L)
24.5mm(W) 7mm(H).
1.3 Weight: 7.2g
1.4 Suitable for:
XERUN-120A-SD, XERUN-60A-SD,
XERUN-120A-1S-SD
EZRUN-25A-H,
EZRUN-35A, EZRUN-60A

How to Use
For the above
ESC, please choose different cooling fans in different
applications.
- For 4-6 cells NiMH or 2S Lipo: Needn't
change the 5V cooling fan on the ESC;
- For 7-9 cells NiMH or
3S Lipo: Please choose a 12V cooling fan or supply the
5V fan from the receiver ( 6V);
- For 10-12 cells NiMH or 4S
Lipo: Please choose a 12V cooling fan, and cut the output of the
built-in BEC, then supply the receiver with an UBEC (An additional external
DC-DC regulator
