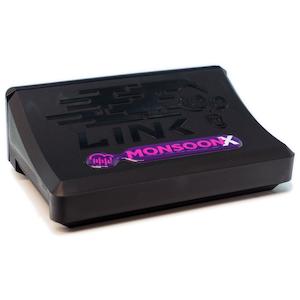

Link G4X MonsoonX ECU

Part Number: 127-4000

MonsoonX More features, more powerful. The MonsoonX has been upgraded to provide 512 megabytes of data logging, meaning you can log much more data at a faster sample rate. Control loops are also more precise compared to its G4 predecessor, along with advancements such as single precision floating point format fuel tables, better resolution within ignition timing and faster communications. These upgrades make the G4X Monsoon a true powerhouse in a small shell. G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec. With the MonsoonX you have all the tuning capabilities of the AtomX, but you can also choose to run some of the following features: Launch Control, Anti-lag, VVT Control and Closed Loop Boost Control. It also comes with a built in 4 bar or 7 bar MAP sensor further reducing installation cost. Now featuring Knock Control. Note: The MonsoonX will run any of the above features, but it cannot run them all at once. The number of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs. The MonsoonX will control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire. This makes it ideal for naturally aspirated or turbocharged engines that just need a retune and one or two extra features, so you don’t need to jump up to one of our higher-level ECUs. Requires A Loom

Features: SPEC OVERVIEW
The MonsoonX is ideal for:
1-12 Cylinder
Distributed
2-8 Cylinder
Wasted Spark
1-4 Cylinder
Direct Spark
Odd Fire
Engines
2-Stroke
Engines
Configurable
Firing Order
Configurable
TDC Points (for odd fire)
Inputs
4 x
Digital inputs
2 x
Temperature inputs
4 x
Analog inputs
2 x
Trigger inputs
1 x Knock Input (Shared with DI4)
1 x
Onboard 4 Bar MAP sensor
Outputs
4 x
Injector drives
4 x
Ignition drivers
6 x
Auxiliary outputs^
5V
Sensor power supply
^unused
ignition drives can be used as additional Aux outputs
Communications
1x CAN
bus
1x USB
tuning connection
Upgraded
communications chip (four times faster than G4 )
Physical:
Dimensions:
95mm(L) x 130mm(W) x 45mm(H) (without loom)
Weight:
220 grams
Advanced
features not found on the AtomX:
Antilag, rolling antilag and launch control.
Up to 2
fully variable closed loop VVT cams.
Misc:
512MB of logging memory
20 general purpose tables
Runs on PC Link software for
G4X
The MonsoonX comes supplied with waterproof
connectors, a mounting bracket and a USB tuning cable. “A Loom" to be purchased
separately.
Download the MonsoonX Quickstart Guide
Download the latest G4X PC Link version

Specifications: Engine Configurations
1-12 Cylinder Distributed
2-8 Cylinder Wasted Spark
1-4 Cylinder Direct Spark
Odd Fire Engines
2-Stroke Engines
Configurable Firing Order
Configurable TDC Points (for odd fire)
Fueling Adjustments
Up to 440 Zone Fuel Table with configurable load and RPM centers. Configurable X and Y Axis Parameters
Multiple Fuel Tables
Up to 6D Fuel Mapping (3D Fuel Table 3x3D Overlay trim tables)
Injection Rate Control for Group Injection Modes
Master Enrichment for Traditional Fuel tuning
Pre-Crank Prime
First Crank Prime
Crank Enrichment
Post Start Enrichment
Warm Up Enrichment
Acceleration Enrichment
IAT Fuel Correction
Injector Deadtime Compensation
Injector Short Pulse Width Compensation
Injector Timing Control with Beginning / End Injection Definable
AFR Table Correction
Dual Closed Loop Lambda
Individual Cylinder Fuel Trims
Overrun Fuel Cut
Idle Load Trims
Fuel Temperature Correction
Ignition Adjustments
Up to 440 Zone Ignition Table with configurable load and RPM centers. Configurable X and Y Axis Parameters
Maximum Advance
Spark Duration
Dwell Time Table. Configurable X and Y Axis Parameters
