MAMBA 5200 9-11 2.5" Fit Subaru GC GD GTX3076R Ball Bearing Turbocharger .49 Hsg

P/N
002-5680
Item Name
MAMBA 2.5" 5200 9-11 Subaru WRX STI GC GD GTX3076R Ball Bearing Turbocharger with.49 Turbine Housing
Application
Subaru Impreza WRX / STI / Forester GC GD EJ20 EJ25 Single Scroll Turbocharger
Replace and upgrade TD04L-13T, TD05H
Replace and Upgrade IHI RHF55 RHF5HB VF22, VF23, VF24, VF28, VF29, VF30, VF34, VF35…
Support HP: 400~750HP
Spec
Compressor wheel : 58.0/76.6 mm (GTX 11 0 Performance Billet Compressor Wheel)
Turbine Wheel: 55/60mm (GTX30R Performance 9 Blade Turbine Wheel )
Compressor Housing Inlet OD: 2.5"
Compressor Housing Outlet OD: 2"
Compressor Housing A/R.: A/R.60
Turbine Housing A/R: A/R.49 (7cm)
Actuator
0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box

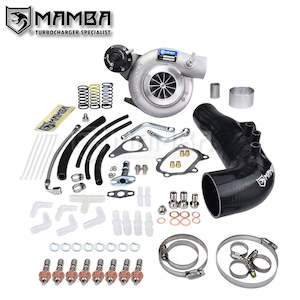

Kit Includes
1 x 9-11 2.5" Subaru GTX3076R Turbocharger with.49 Turbine Housing
1 x Oil Feed Line Kit (From engine or AVCS to Turbo)
2 x Turbo Water Line Kit
1 x Turbo Oil Return Line Kit
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
1 x 2.5" Intake Silicon Hose
Made By
MAMBATEK
