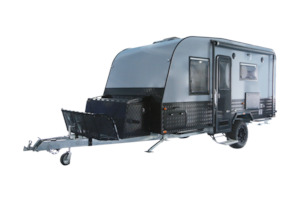

Explorer-16A

Basic Information

Body size

4868(L) 2201(W) 2070(H)/ mm

Interior dimensions

4801(L) 2134(W) 1960(H)/ mm

Overall size

7777(L) 2300(W) 3093(H)/ mm

ATM

2800 KG

GTM

2650 KG

Tare Mass

2150 KG

Maximum load

650 KG

Chassis material

iron tube hot dip galvanized tube

Body structure

Fiberglass aluminum frame XPS Fiberglass

Floor structure

plastic honeycomb board PVC floor adhesive

Distance from the ground

548 mm (Drawbar)

Height of aluminum checker plate

590 mm

Sleep

Sleep capacity

3 people

Double bed size

1900 1500mm

Size of sofa bed

1540 800mm

Mattress material

Sponge latex pad

Kitchen

Kitchen area

1540 800mm

Table

Pneumatic lifting table

Seats on sofa

4

Sofa

Black artificial leather

Tow System

Hitch

Australian standard off-road hitch; 3500KG

Safety chains

2

Axle and Suspension

Independent suspension system

Single Axle

Axle

Ø 60 round steel

Damping

Spring damping rod, with a total load of 2800 KG

Braking

12-inch electric brake with manual brake

Wheel hub

16-inch aluminum alloy

Tyre

265/75R16

Water System

PE freshwater tank

2x 95L

Grey water tank

125 L

Water heater

14L Truma water heater

Water pump

12V water pump with flow rate of 11.3LPM

Water inlet

PE water inlet

One-piece fiberglass bathroom

Faucet

hot and cold faucets

Sewage valve

External shower box (hot and cold water)

External single cooling brass faucet

Sink with cover

Gas System

9KG gas bottle rack

2

All copper gas pipe system

Electric System

Front car connector

7-core flat connector

50A Anderson plug

Emergency braking system

Taillight set

License plate lights

2

Side wall lights

6

Front position lights

2

Reflective sheet

Battery

maintenance-free battery, 12V150AH Upgrade to 2x100AH Lithium

Battery

Sine wave inverter

12V to 240V, 2000W, with charging function

Solar energy controller

20A

Solar panels

12V, 3x100W solar panels

Electricity display

electricity meter (digital display)

Water level display

freshwater level table and grey level table

External mains socket

220V-240V, 15A

External charging cable

10m

240V circuit breaker

12V circuit breaker

Available power outlets

110 ~ 240 V outlets x5, 4x USB

Sockets cigarette lighter

External electrical outlet

1x220V outlet 1xUSB

outlet 1 cigarette lighter

Lighting

LED

Reverse camera

Electric Facilities

Fridge

Dometic 180L

Thetford four-head burner

Oven upgrade available

Thetford toilet

Microwave oven

Kitchen extractor fan

Dometic air conditioner B3200

MP3 player

Interior Speaker

2

Exterior waterproof speaker

2

Digital TV antenna

FM radio antenna

Bathroom ventilator

2

700 500 skylight with lights

1

Windows

700x800 x2, 900x450 x1, 700x400 x1 and 450x500 x1

Door handle with led light

External folding table

1

Smoke detector, Gas alarm
