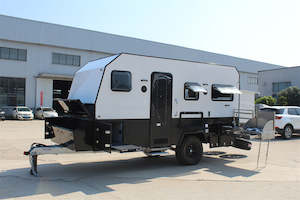

Voyager-15HR

1

Width

2170mm

2

Height

2840mm

3

Length (Hitch to Spare tyre holders)

6400mm

4

Ball Weight

230kg

5

Tare Weight

2000kg

6

GTM

3,000kg

7

Drawbar Construction

Hot dipped galvanised Inside & Outside150mm x 50mm x 3mm

8

Chassis Construction

Hot dipped galvanised Inside & Outside 150mm x 50mm x 3mm

9

Body Construction

Reinforced Aluminium tube

10

Roof Construction

Reinforced fiberglass outside roof with inner aluminium composite wall with aluminium frame

11

Ripple paint Rock guard

Rock guard with ripple paint

12

Surface finish

Royal silver aluminium composite panel black colour aluminium checker plate

13

Inner finish

Royal white wall with aluminium composite panel

14

Safety Chains

Double Safety Chains

15

Suspension

Independent Arm Suspension With 4x reinforced auto-kick-back Shock Absorbers With high performance coil springs

16

Wheel/Tyre Info

4x iron 1750KG 16-inch Rims, Goodride brand Mud Terrain 265/75 R16 4 pcs

17

Coupling

360 fully off-road poly block coupling

18

Electric Brakes

4WD 12-inch Electric brakes With Hand Brake

19

Stone Guard

Hot dipped galvanized frame with Stone guard mesh with black powder coated aluminium checker plate stone guard wings

20

Gas holder

2 x 9kg Gas holder

21

Jerry Cans holder

2 x 20L Jerry Can Holders

22

Kitchen Construction

External 304 Grade Stainless Steel

23

Water Tank

3X85L Food grade Poly = 255 Litres Total

24

Water tank protector

Aluminium checker plate water tank protector

25

Water Delivery

Marine grade 12V Electric Pump

26

Shower (Ensuite)

Hot/Cold shower head with RV Side Mounted Shower Tent

27

Shower room (internal)

Internal shower room. With shower head, Thetford brand toilet, RV roof air vent with air vent cover

28

Double bunk bed

Double bunk bed

29

Structure

Fully Welded aluminium Frame Hot dipped galvanized Chassis

30

Jockey wheel

10" Swing-Up jockey wheel

31

Storage

2 Large Storage Boxes Offering Drawers and Plenty Of Open Space

32

LED Lights

LED Taillights/LED tent lights/Indicators/NO. plate lights.

33

Stabilizer Legs

4 x Heavy Duty Lockable and Adjustable Drop-Down stabilizer legs

34

Spring Mattress

150mm top grade Custom Queen foldable Innerspring mattress.

35

Water sink 1pc

stainless steel kitchen with stainless steel water sink

36

Water sink 1pc

Stainless steel water sink inside caravan, on top of cabinet

37

Taps

Hot and Cold water taps 2pcs.Inner water sink with 1pc, outer kitchen with 1pc.and drawbar area has wastewater tap 1pc

38

LED handle light

Led handle light 1pc

39

Gas pipe

copper pipe for gas

40

Water pipe

water pipe

41

Electric

Electric fully wired

42

Electric panel

black colour powder coated, designed for convenience and security.

43

Amp and Voltmeter

Amp and Voltmeter with control panel

44

Water gauge and Water meter

Water tank with water gauge and water meter

45

Double tyre holder with tyres

double spare tyre holder with 4 pcs GoodRide Brand 265/75R16 tyres and aluminium alloy rims 4 pcs

46

LED Reading lights

LED reading lights 2pcs around the bed

47

Stepper

Aluminium stepper 1pc

48

Door and window

High quality door with mosquito mesh and security mesh and Window with shade curtain

49

Slide out Tail gate finish

Aluminium panel with enamel car paint finish

51

Shower tent

Shower tent outside caravan

52

Sofa

High quality leather Sofa 1 unit

53

Cabinet construction DOUBLEBREA
