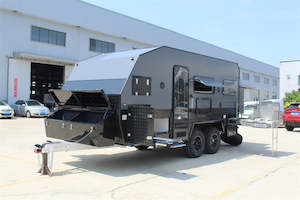

Voyager-17HR

1

Width

2300mm

2

Height

3350mm

3

Length (Hitch To spare tyre holder)

6950mm

4

Ball Weight

220KG

5

Tare Weight

2600KG

6

GTM

3,000kg

7

Drawbar Construction

Hot dipped galvanised Inside & Outside 150mm x 50mm x 3mm

8

Chassis Construction

Hot dipped galvanised Inside & Outside 150mm x 50mm x 3mm

9

Body Construction

Reinforced Aluminium tube

10

Roof Construction

Reinforced fiberglass outside roof with inner aluminium composite wall with aluminium frame

11

Ripple paint Rock guard

Rock guard with ripple paint

12

Surface finish

Royal silver aluminium composite panel black colour aluminium checker plate

13

Inner finish

Royal white wall with aluminium composite panel

14

Safety Chains

Double Safety Chains

15

Suspension

Independent Arm Suspension With 8x reinforced auto-kick-back Shock Absorbers With high performance coil springs

16

Wheel/Tyre Info/Double axle

6x 1750KG 16-inch reinforced Rims, Kenda brand Mud Terrain 265/75 R16 6 pcs

17

Coupling

Standard coupling

18

Electric Brakes

4WD 12-inch Electric brakes With Hand Brake

19

Stone Guard

Hot dipped galvanized frame with High quality Stone guard mesh with black powder coated aluminium checker plate stone guard wings

20

Gas holder

2 x 9kg Gas holder

21

Jerry Cans holder

2 x 20L Jerry Can Holders

22

Kitchen Construction

External 304 Grade Stainless Steel

23

Water Tank

2x 85L 1x35L Food grade Poly = 200 Litres Total

24

Water tank protector

Aluminium checker plate water tank protector

25

Water Delivery

Marine grade 12V Electric Pump

26

Shower Outside of caravan (Ensuite)

Hot/Cold shower head with RV Side Mounted Shower Tent

27

Shower room, inner caravan (With Thetford brand toilet and toilet door)

shower room inner caravan. With shower head and soap carrier with Thetford brand toilet and Thetford brand super convenient portable toilet tank door, with RV roof air vent with air vent cover

28

Double bunk bed

With double bunk bed

29

Structure

Fully Welded aluminium Frame Hot dipped galvanized Chassis

30

Jockey Wheel

10" Swing-Up jockey wheel

31

Storage

2 Large Storage Boxes Offering Drawers and Plenty of Open Space

32

LED Lights

LED Taillights/LED tent lights/Indicators/NO. plate lights.

33

Stabilizer Legs

4 x Heavy Duty Lockable and Adjustable Drop-Down stabilizer legs

34

Bed frame base

Aluminium alloy frame

35

Spring Mattress

150mm top grade Custom Queen foldable Inner spring mattress.

36

Water sink 2pcs

External stainless-steel kitchen with stainless steel water sink

37

Internal Stainless steel water sink.

38

Taps

Hot and Cold-water taps 2pcs.Inner water sink with 1pc, outer kitchen with 1pc.and drawbar area has wastewater tap 1pc

39

LED handle light

Led handle light 1pc

40

Gas pipe

copper pipe for gas and fully assembled

41

Water pipe

water pipe fully assembled

42

Electric

Electric fully wired

44

Amp and Voltmeter

Amp and Voltmeter with control panel

45

Water gauge and Water meter

Water tank with water gauge and water meter

46

Double tyre holder with tyres

double spare tyre holder with 4 pcs GoodRide Brand 265/75R16 tyres and aluminium alloy rims 4 pcs

47

LED Reading lights

LED reading lights 2pcs around the bed

48

Table

Fold down table

49

Stepper

Aluminium stepper 1pc

50

Door and window

High quality door with mosquito mesh and security mesh and Window with shade curtain

51

Slide out Tail gate finish

Aluminium panel with enamel car paint finish

52 D
