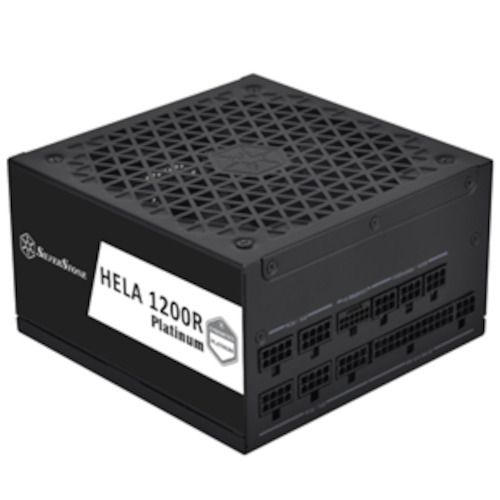

1200w Platinum Gen5 Modular – GLI Computers

SST-HA1200R-PM

1200W PCIE GEN5, fully modular, efficiency Cybernetices PLATINUM certification, support ATX 3.0 standard

Specifications Colour Black Max. DC Output 1200W Power Density 620W per liter Load Range Output 3.3V 5V 12V 5VSB -12V Max.(Amps) 22A 22A 100A 2.5A 0.3A Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±3% ±3% 5/-7% ±5% ±5% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 30mV 30mV 70mV 40mV 40mV Combined 3.3V & 5V 120W Combined 12V 1200W Input Voltage 90 ~ 264 Vrms Input Frequency Range 47Hz ~ 63Hz PFC Active PFC (PF>0.9 at full load) Efficiency ≥87% & <89% overall efficiency MTBF 100,000 hours Operating Temperature 0°C ~ 50°C Protection Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation Connectors 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12 4-Pin 12VHPWR con...
