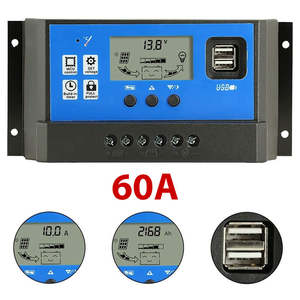

Solar Controller 60A

60A solar charge controller, intelligent USB port display 12V/24V automatic charge regulator
Features:
-Solar charge controller PWM 60A with automatic work 12V/24V. Maximum input voltage 48V, maximum input power 1560W.
-5V/2.5A dual USB port, large screen LCD display with power off memory.
-Built-in full protection and three-stage charging to extend battery life.
-OPEN, AGM, GEL lead acid batteries support. Do not use other batteries (including lithium batteries, nickel-metal hydride batteries,.).
-Working mode with three load to meet your different need, good design to sink in heat. Easy to set up and connect.
Specifications:
-System Voltage: 12V/24V Auto
-Charge current: 60A
-Max input voltage: 24V (12V system); 48V (24V system)
-Max input power: 780W (12V system); 1560W (24V system)
-USB output: Dual USB output, 5V/2.5A
-Batteries: Only fit for OPEN, AGM, GEL
-Float charge: 13.7V (default, adjustable)
Discharge reconnect voltage: 12.6V(default, adjustable) Discharge stop voltage: 10.7(default, adjustable) Turn ON/OFF light voltage: Solar panel 8V.
Load mode:
- 24H Load always turn on. except your battery's voltage is too low to read
- 0H Light control mode. controller recognize voltage auto, if solar panel's voltage under 8V, Load will turn on
- 1-15H Light controller Set a specific time to turn off your load. eg turn on your light when Dark, and will auto turn off your light after 1~15 hours
Lagre-screen LCD display
-charging and discharging power query
-cumulative power generation and discharge power query
-Temperature display
-Lighting control delay control
-adjustable charge and discharge parameters
-Power-off memory
