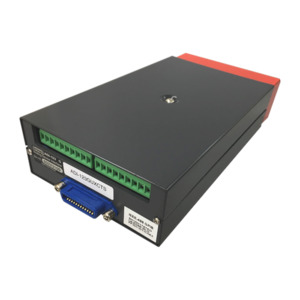

ADI-123-G, Analog Device Interface with IEEE-488 GPIB Interface group3

Model ADI-123 Analog Device Interface offers the means of computer interfacing almost on any device whic is provided with dc inputs and/or outputs, for example programmable power supplies and measuring instruments of all kinds. FeaturesOne analog control output and 2 analog monitoring inputs.Analog channels have 14-bit resolution.Analog inputs are fully differential for excellent common-mode rejection.Analog out put is offered in unipolar and bipolar options, 5 volt and 10 volt.Input/output module options allow standard or user-defined analog levels.Three two-state (digital) channels for on/off control and status monitoring.
