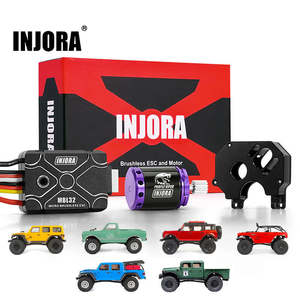

INJORA Micro Brushless MBL32 ESC & 1621 Purple Viper Motor Combo For 1/24 SCX24
INJORA Micro Brushless MBL32 ESC & 1621 Purple Viper Motor Combo for 1/24 SCX24
Note:
- The motor is only compatible with: 1/24 SCX24
- You need to cut the ESC tray to make room for installing the brushless kit.
- The ESC is compatible with most of the receiver and remote combinations that with CH2
- Instruction Manuals
- Programming Tutorial (Your device has been pre-configured with the optimal settings right out of the factory, so no further setup is required.)
- Never plug the battery upside down, otherwise the ESC will immediately burn out！
If your transmitter does not control the car well, please try these:
- If you are using a 2S battery, please set the BEC output to 6.0V using the DIP switches. Different settings are required for 2S and 3S batteries!
- Before powering on, set the transmitter's throttle trim to 0% at neutral.
- Increase the distance between the transmitter and the car to avoid signal interference.
- Please use a 2S battery of 750mAh or more, or a 3S battery of 450mAh or more. For optimal performance, we recommend using a 3S Lipo battery.
Features:
- INJORA MBL32 ESC based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
- The MBL32 ESC features a built-in BEC with adjustable output: 6V/7.4V
- Smooth and linear at low speeds, powerful and aggressive at high speeds.
- Runs more quietly than brushed systems, producing virtually no noise.
- 1621 Purple Viper outrunner motor, equipped with a mounting plate to mount the motor on the SCX24.
- Plug-and-Play Convenience: Includes multiple adapter cables for different battery connectors.
ESC Specifications:
- Part Number: MBL32 (MBL: Micro Brushless)
- Max.Current: 30A
- LiPo Cells: 2-3s
- Compatible Motors: INJORA 1621/2204
- Applications: 1/18 1/24 RC Crawlers
- BEC: Max 3A
- BEC Output: 6.0v/7.4V (adjustable by DIP switch)
- Motor Connectors: PH2.0 3Pin
- Dimensions(L W H): 30 22 11mm
- Weight: 16g
- Waterproof: No
1621 Motor Specifications:
- Model Number: 1621
- Motor Type: Sensorless Brushless Outrunner
- RPM/Volt: 3600KV
- Rated Power: 3600W
- No-Load Current (10/11.1V): 0.9 A
- Max Continuous Current: 17 A
- Max Peak Current: To be determined by the model and conditions of use.
- Motor Connectors: PH2.0 3Pin
- Dimensions: Φ15.7 20.9mm
- Motor Qutput Shaft: Φ1.7mm
- Motor Pinion: 0.3mod 12T
- Weight: 16g
- Waterproof: Yes
Package List:
- 1 Micro Brushless ESC
- 1 1621 Brushless Motor with Pinion & Mounting Plate
- 1 Battery Adapter Cable (Female XT30 to Male JST PH2.0)
- 1 Battery Adapter Cable (Female XT30 to Male JST-RCY)
- 1 Programmer
- 1 Instruction Manual
