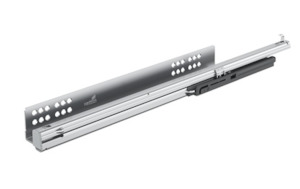

Hettich Germany Quadro V6 with Silent System, Full Extension Runner for Wooden Drawer 30Kgs Set ( Left and Right ) Length : 480mm ,500mm ,520mm, 550mm ,580mm ,600mm

Quadro V6 with Silent System, full extension runner for wooden drawer 30Kgs Set ( left and Right ) (slide on installation, drawer side profile thickness more than or 16 mm)

- Slide on installation with catches and tool-less height adjustment
- Integrated Silent System
- Optional: catch and plug for pull-out shelves
- Optional: Pull-out shelf locating catch
- Suitable for drawers with a side profile thickness of up to 16 mm
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Load capacity to EN 15338, Level 3
- Galvanised steel Technical details Load capacity kg 30 kg Installed width EB 20 Hole spacing b1 256 mm Nominal length 480 mm Mounting side left/Right Type of runner Concealed runner Type of drawer runner Full extension runner User friendly features Silent System Minimum cabinet body depth KT 493 mm Type of installation slide on installation Installed width (side profile thickness) EB 20 (drawer side profile thickness ≤ 16mm) Components Drawer runners EAN 4023149379604 Previous order no. 9080236 Order no. 9118039 PU 20 Technical details Load capacity kg 30 kg Installed width EB 20 Hole spacing b1 288 mm Hole spacing b2 224 mm Nominal length 500 mm Mounting side left/Right Type of runner Concealed runner Type of drawer runner Full extension runner User friendly features Silent System Minimum cabinet body depth KT 513 mm

Technical details Load capacity kg 30 kg Installed width EB 20 Hole spacing b1 288 mm Hole spacing b2 224 mm Nominal length 520 mm Mounting side left/Right Type of runner Concealed runner Type of drawer runner Full extension runner User friendly features Silent System Minimum cabinet body depth KT 533 mm Technical details Load capacity kg 30 kg Installed width EB 20 Hole spacing b1 288 mm Hole spacing b2 224 mm Nominal length 550 mm Mounting side left/Right Type of runner Concealed runner Type of drawer runner Full extension runner User friendly features Silent System Minimum cabinet body depth KT 563 mm Type of installation slide on installation Installed width (side profile thickness) EB 20 (drawer side profile thickness ≤ 16mm) Technical details Load capacity kg 25 kg Installed width EB 20 Hole spacing b1 352 mm Nominal length 580 mm Mounting side left/Right Type of runner Concealed runner Type of drawer runner Full extension runner User friendly features Silent System Minimum cabinet body depth KT 593 mm Technical details Load capacity kg 25 kg Installed width EB 20 Hole spacing b1 352 mm Nominal length 600 mm Mounting side left/Right Type of runner Concealed runner Type of drawer runner Full extension runner User friendly features Silent System Minimum cabinet body depth KT 613 mm

Length - Available in 13 Sizes : 280mm ,300mm ,350mm,380mm,400mm ,420mm,450mm,480mm ,500mm ,520mm, 550mm ,580mm ,600mm
