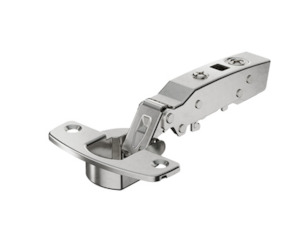

Hettich Germany Sensys 110° Hinge with Integrated Silent System Overlay ,Half overlay & Inset TH-Drilling Pattern 52 x 5.5 mm, for Screwing On Finish Nickle plated

:

- Sensys 110° hinge
- With integrated Silent System, with self closing feature (Sensys 8645i)
- Quality classification under EN 15570, Level 3
- Opening angle 110°
- For door thickness 15 - 24 mm
- Door mounting option overlay
- Drilling pattern TH 52 x 5,5 mm
- Cup depth 12.8 mm
- Installation for screwing on
- Integrated overlay adjustment 2 mm / -2 mm
- Integrated depth adjustment 3 mm / -2 mm
- Height adjustment at mounting plate
- steel nickel plated Technical details : Overlay
Design 90° construction Door type Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm) User friendly features with integrated silent system Door mounting option overlay Opening angle 110 ° Min. door thickness 15 mm Max. door thickness 24 mm Cup version TH 52 Base 12.5 mm Cup diameter 35 mm Cup depth 12.8 mm Type of installation for screwing on Hinge surface finish steel nickel plated Drilling pattern TH 52 x 5,5 mm Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max. Integrated overlay adjustment 2 mm / -2 mm Integrated depth adjustment 3 mm / -2 mm Mounting hole - Stay closed function Yes Finish nickel plated EAN 4023149030901 Order no. 9071205 PU 200 Technical details : Half overlay
Design 90° construction Door type Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm) User friendly features with integrated silent system Door mounting option half overlay Opening angle 110 ° Min. door thickness 15 mm Max. door thickness 24 mm Cup version TH 52 Base 3 mm Cup diameter 35 mm Cup depth 12.8 mm Type of installation for screwing on Hinge surface finish steel nickel plated Drilling pattern TH 52 x 5,5 mm Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max. Integrated overlay adjustment 2 mm / -2 mm Integrated depth adjustment 3 mm / -2 mm Mounting hole - Stay closed function Yes Finish nickel plated EAN 4023149652202 Order no. 9071206 PU 200

Technical details : Inset
Design 90° construction Door type Standard door / wooden door
Wood framed door (profile width from 50 mm)
Aluminium framed door (profile width from 50 mm) User friendly features with integrated silent system Door mounting option inset Opening angle 110 ° Min. door thickness 15 mm Max. door thickness 24 mm Cup version TH 52 Base -4 mm Cup diameter 35 mm Cup depth 12.8 mm Type of installation for screwing on Hinge surface finish steel nickel plated Drilling pattern TH 52 x 5,5 mm Diameter of mounting hole Centre punch
Predrilled hole 2.5 mm Ø max. Integrated overlay adjustment 2 mm / -2 mm Integrated depth adjustment 3 mm / -2 mm Mounting hole - Stay closed function Yes Finish nickel plated EAN 4023149033681 Order no. 9071207 PU 200
