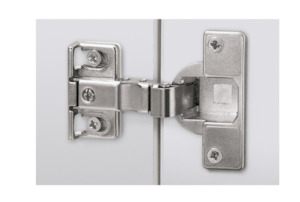

Hettich Germany Special Hinge 582 Steel Nickel Plated

:

- Special hinge with short hinge protrusion for refrigerator surrounds
- Cup diameter 35 mm
- Cup depth 12.8 mm
- With stay closed function
- Including mounting plate and distance plate (distance = 3 mm) for overlays of 13 - 18 mm
- Integrated 1 mm / - 1 mm overlay adjustment
- Integrated depth adjustment 3 mm / - 3 mm
- Hinge arm material: steel, nickel plated
- Hinge cup material: nickel plated die-cast zinc
- Distance plate material: plastic, white Mounting plate with plastic distance plate = 3 mm distance Mounting plate without plastic distance plate = 0 mm distance Dimension C mm Overlay mm Dimension C mm Overlay mm 3.0 13.0 3.0 16.0 3.5 13.5 3.5 16.5 4.0 14.0 4.0 17.0 4.5 14.5 4.5 17.5 5.0 15.0 5.0 18.0
