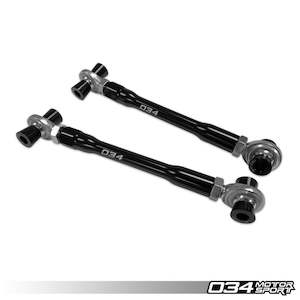

Motorsport Adjustable Rear Toe Links, Volkswagen & Audi PQ35 and MQB EVO
:
Replace your fixed, stamped steel factory rear toe links on your 8V/8V.5 Audi A3/S3/RS3, MkIII Audi TT/TTS/TTRS or MkVII Volkswagen Golf/GTI/R with this performance engineered adjustable set from 034Motorsport!
034Motorsport's MQB Motorsport Line Adjustable Rear Toe Links facilitate simple and precise toe adjustments, making alignment changes for optimal track performance or even tire wear easier than ever. In addition, Motorsport Line Adjustable Rear Toe Links feature Aurora spherical rod ends for ultimate precision and durability - ensuring that proper suspension geometry is maintained during hard cornering.
MQB Motorsport Line Adjustable Rear Toe Links were thoroughly tested on the street and track on 034Motorsport's 8V.5 Audi RS3 Development Vehicle before release. These adjustable toe links are direct replacements for the stock parts, and designed to be fully serviceable and rebuildable. Features:
- CNC Machined 6061-T6 Aluminum Tie Rod Bodies - Anodized Black for Durability
- CNC Machined Aluminum Rod End Spacers
- Aurora Spherical Rod Ends Featuring Self-Lubricating Teflon Race Lining
- Designed For Easy, Precise, On-Car Adjustability
- Direct Drop-In Replacements for Factory Toe Links
- Sold In Pairs Functions:
- Precise Toe Adjustment
- Eliminates All Bushing Deflection
- Improved Handling What's Included:
- 034Motorsport Billet Adjustable Motorsport Rear Toe Link Pair Replaces:
- OE Part: 5Q0 501 529C Recommended Alignment:
034Motorsport RS3 track use alignment specs; these specifications are optimal for a track driven car with a very "loose" handling attitude and lively rear end that drives towards oversteer. Caution should be used with these alignment specs as they can cause the car to over-rotate and spin, especially during throttle-lift conditions while turning:
- Front: (Tires: 265/35-18 Michelin Sport Cup 2)
- Camber: -3.0 degrees each side (034-601-1013 camber mounts)
- Caster: 7.1 degrees (not adjustable)
- Toe: 0.6mm (toe-in) each side
- Rear: (Tires: 245/40-18 Michelin Sport Cup 2)
- Camber: -1.5 degrees each side
- Toe: 0.8mm (toe-in) each side
Our test vehicle is also running 034Motorsport front and rear sway bars, and all 034Motorsport spherical Motorsport line of products. Fitment Make Model Years Chassis Audi A3 2015-Present 8V/8V.5-MQB Audi Q2 2017-2021 MQB Audi RS3 2015-Present 8V/8V.5-MQB Audi RS3 2022-Present 8Y Audi RSQ3 2019-Present F3 Audi S3 2015-Present 8V/8V.5-MQB Audi TT 2016-Present 8S-MQB Audi TTS 2016-Present 8S-MQB Audi TTRS 2016-Present 8S-MQB Cupra (Seat) Formentor 2021-Present Mk1 Seat Leon 2012-2020 MQB Seat Tarraco 2019-2021 Mk1 Skoda Kodiaq 2016-Present Mk1 Skoda Octavia 2013-2020 Mk3 Skoda Superb 2016-2020 B8 VW Golf 2015-Present Mk7-MQB VW E-Golf 2015-2020 Mk7/Mk7.5 VW GTI 2015-Present Mk7-MQB VW R 2015-Present Mk7-MQB
NOTE: AWD Only
NOTE: IRS Only
The installation of your is a straightforward process that will take approximately 2 hours to complete. You can access our detailed installation guide by clicking the icon on the left.
Download the Install Guide
