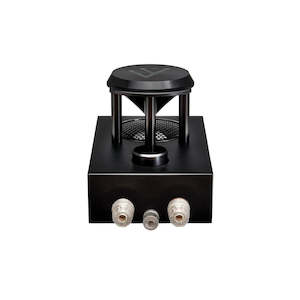

Fyne Audio - S-Trax - Super Tweeter for any Loudspeaker

S-Trax SuperTweeter extends your speakers’ high-frequency range far beyond what’s normally heard, enhancing clarity, realism, and the sense of space and air to your music.

SENSATIONAL SOUND. SENSATIONAL VALUE.

Music isn’t just something you listen to; it’s something you feel. The deepest bass notes, the richness of vocals, the sparkle of high frequencies all come together to create a truly immersive experience. But what if you could unlock even more detail? Distilling everything Fyne learnt from developing their original audiophile SuperTrax into a compact, value driven version, the S-Trax extends your speakers’ high-frequency range far beyond what’s normally heard, enhancing clarity, realism, and the sense of space and air to your music. Room-Filling 360 degree Sound

Traditional super tweeters tend to focus sound in a narrow beam, which limits how evenly high frequencies spread across the room. S-Trax takes a different approach. Using Fyne’s innovative, patented omnidirectional design, it radiates high frequencies in all directions, creating a more open, spacious, and immersive soundstage—no matter where you’re sitting. Improve your existing system

The S-Trax works at its optimum with Fyne’s IsoFlare point source driver, however any loudspeaker will see improvements in sound. Designed with a sleek, understated look, S-Trax complements a wide range of speakers, making it a perfect addition to upgrade any hi-fi system. 360 degree experience

By using Fyne’s patented time aligned omnidirectional S-Trax, reflected energy in the room has the same harmonic structure as the direct on axis energy. The result? An increased perception of air and space to the sound. Magnesium dome

Instruments create frequencies far beyond what the human ear can consciously detect—sometimes up to 50kHz or more. Featuring a Magnesium dome tweeter, this lightweight yet rigid material allows for a smooth and extended response, introducing controlled break-up only beyond the audible range.
TECHNICAL SPECIFICATIONS

Maximum Recommended amplifier power (Watt RMS)
300

Sensitivity (2.83 Volt @ 1m)
Suitable for loudspeakers up to 98dB typically

Nominal impedance
8 Ohm

Frequency response (-6dB typical in room)
16kHz – 50kHz

Drive unit complement
25mm (1")- Magnesium dome with neodymium magnet system

Crossover type
3rd order high pass 16kHz, CryoLite treated

System adjustments
/- 4.5dB from nominal setting

Dimensions – HxWxD
79 x 82 x 149mm (3.1 x 3.2 x 5.6″)

Weight
1kg (2.2lbs)

Finishes
Black
