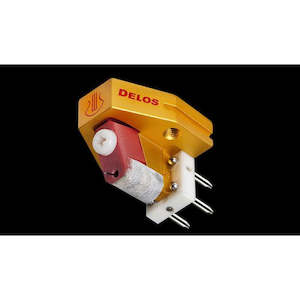

Lyra - Delos - Moving Coil Turntable Cartridge
Compared to conventional cartridges, the Lyra Delos has a body structure with an unusually shallow angle, which is paired with a unique asymmetrical damping system.
The Delos also has a microridge stylus on a boron cantilever for outstanding tracking, a non-parallel solid machined metal body for low resonances, and 6-N high-purity copper coils and nude construction for greater clarity.
The result is clearly improved sound quality, particularly resolution, tracking ability, dynamic range, transient impact and immediacy.
- Designer: Jonathan Carr
- Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (primary build)
- Type: Medium weight, medium compliance, low-impedance moving coil cartridge
- Stylus: Namiki microridge line-contact nude diamond stylus (2.5um x 75um), surface-mounted
- Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
- Coils: 3-layer deep, 6N high-purity copper, square-shaped high-purity iron former, 6.3ohm self-impedance, 9.5uH inductance
- Output voltage: 0.6mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
- Frequency range: 10Hz ~ 50kHz
- Channel separation: 30dB or better at 1kHz
- Compliance: Approx. 12 x 10cm/dyne at 100Hz
- Vertical tracking angle: 20 degrees
- Cartridge body: One-piece machining from solid 6063 aluminum billet, partially non-parallel shaping, body threaded directly for mounting screws
- Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
- Distance from mounting holes to stylus tip: 9.5mm
- Cartridge weight (without stylus cover): 7.3g
- Recommended tracking force: 1.7g – 1.8g (1.75g preferred)
- Recommended load directly into MC phono input: 97.6ohm ~ 806ohm (determine by listening, or follow detailed guidelines in instruction manual)
- Recommended load via step-up transformer: 5 ~ 15ohm (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
- Recommended tonearms: High-quality pivoted or linear (tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA adjustment
ABOUT LYRA
Based in Tokyo, LYRA is headed by Stig Bjorge from Norway, with American design engineer Jonathan Carr, and Japanese master craftsman Yoshinori Mishima making cartridges and supervising production. All products are manufactured in Japan with microscopic attention to detail under the direct supervision of these three.
LYRA products are characteri s ed by advanced design engineering allied with Japanese artisanal craftsmanship and build quality. All Lyra products are developed and crafted to be among the very finest available in their category.
Every detail of each LYRA product is thought through and executed with extreme care. LYRA is one of the few audio companies with truly original design development capability. Each new product is designed from the ground and up and introduces meaningful industry-leading advances.
