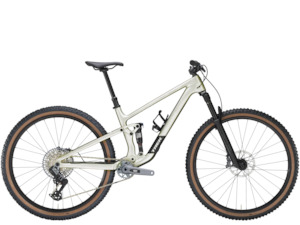

2025 Top Fuel 9.8 GX AXS Gen 4

The Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm RockShox suspension package with a Pike Select fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.

Specifications:

Frame

OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel

Shock

RockShox Deluxe Ultimate RCT, 185 mm x 50 mm

Fork

RockShox Pike Select , DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel

Brakes

SRAM Level Bronze 4-piston hydraulic disc

Shifters

SRAM AXS POD

Front Derailleur

N/A

Rear Derailleur

SRAM GX Eagle AXS, T-Type

Cassette

SRAM Eagle XS-1275, T-Type, 10-52, 12-speed

Crankset

SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length

Wheel Front

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"

Wheel Rear

Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29"

Tyres

Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40

Seatpost

Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
