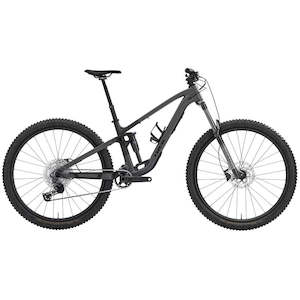

2026 Fuel Ex 5 Gen 7

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.

Specifications:

Frame

Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm

Shock

X-Fusion Pro 2, 2-position damper, 205 mm x 60mm

Fork

Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

Brakes

Shimano hydraulic disc, MT201 lever, MT200 calliper

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M6100, long cage

Cassette

Shimano Deore M6100, 10-51, 12-speed

Crankset

Shimano MT512, 30T ring, 55 mm chain line, 170 mm length

Rims

Bontrager Line TLR 30, Tubeless-Ready

Hubs

Shimano TC500 alloy, CentreLock

Tyres

Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi

Seatpost

TranzX JD-YSI34, internal routing, 34.9 mm
