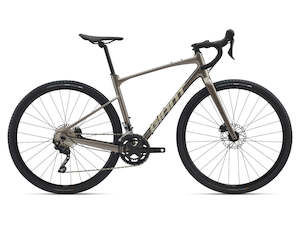

2025 Revolt 1

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance. Key Performance Factors Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain. Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing. Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications:

Frame

ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout

Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebars

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Shifter

Shimano GRX RX-400, 2x10

Rear Derailleur

Shimano GRX RX-400

Front Derailleur

Shimano Tiagra

Cassette

Shimano HG500, 11x34

Crankset

FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Wheelset

Giant S-X2 Disc wheelset, alloy rims, with Giant alloy, 12mm thru-axle hubs
