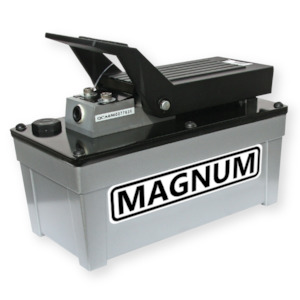

Magnum Air Hydraulic Pump 1.6L – MAG1600AIR

The MAG1600AIR air-power hydraulic pump is designed for using with single-acting cylinders and tools.
Rugged construction that most components are made of Aluminum alloy and built for long service life, easy operation and portability.
Automatic overload relief setting as 10, 000 psi protects components in hydraulic system and ensure work safety.
New inlet & outlet design features low exhausting air volume, quiet effect and can be operated in all directions.

Features
• Model: MAG1600AIR • Single acting, foot operated
• Lightweight rugged construction
• 1600cc Oil capacity
• Max. Air Pressure 100 PSI
• Max. Hydraulic Pressure 10,000 PSI --

Model No.

Acting

Max Pressure Output (psi)

Value

Oil Delivery (cc/min. @)

Type

Function

0 (psi)

100 (psi)

5000 (psi)

10000 (psi)

MAG1600AIR

Sigle

10,000

---

Advance

1250

---

----

195

Model No

Input Air Pressure (kg)

Reservoir Capacity (c.c)

Usable Oil Capacity (c.c)

A (mm)

B (mm)

C
(mm)

D (mm)

E (mm)

F (mm)

G (mm)

H (mm)

Weight (kg)

MAG1600AIR

7-10

1600

1300

207

152

114

224

129

90

3/8"-NPT

-

7.3
