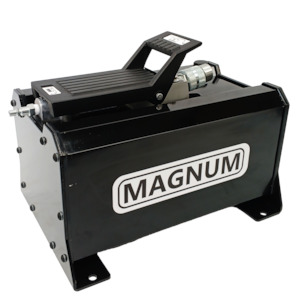

Magnum Air Hydraulic Pump 6.8L – MAG6800AIR

The MAG6800AIR air-power hydraulic pump is designed for single-acting cylinders and tools. Rugged Alloy construction built for long service life, easy operation and portability. Automatic overload relief setting as 10,000 psi protects components in hydraulic system and ensure work safety. Strong ergonomic foot pedal design and features low exhausting air volume. Features
• Model: MAG6800AIR • Single acting, foot operated
• 6800cc Oil capacity
• Heavy-duty durable Alloy tank
• Max. Air Pressure 100 PSI
• Max. Hydraulic Pressure 10,000 PSI ---

Model No

Input Air Pressure (PSI)

Reservoir Capacity (c.c)

Usable Oil Capacity (c.c)

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

G (mm)

MAG6800AIR

100

7200

6800

270

220

195

350

250

90

3/8"NPT
