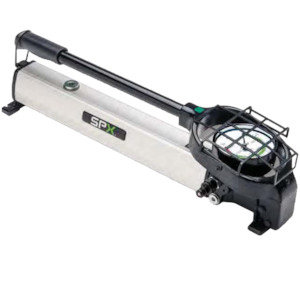

SPX High Pressure Hand Pump

- Two-speed reduces handle strokes so you work faster and easier.
- Built-in, protected pressure gauge.
- Ergonomic design for minimal handle effort.
- Lightweight aluminum reservoir.
- Easily accessible refill port.

- Needle valve allows full control when releasing tension. Pressure: 0 - 1,500 bar (0 - 21,750 psi)
Typical Flow: 20 cm3 stroke - 1 cm3 stroke (1.22 in 3 /stroke - 0.061 in3 /stroke)
Maximum Oil Capacity: (vented reservoir): 1 L (0.29 Gallons) to fill line
1.0 L (0.26 Gallons) usable Size: (L x W x H): 62 cm x 11 cm x 17 cm 24.4" x 4.3" x 6.7"
Weight: 8.7 kg (19.1 lb) with oil
Operating Environment: -25°C to 50°C (-13°F to 122°F)
(When operating near temperature extremes, it is
recommended to use hydraulic oils that are rated
for those temperatures. Refer to service manuals
and cooling options) ---
