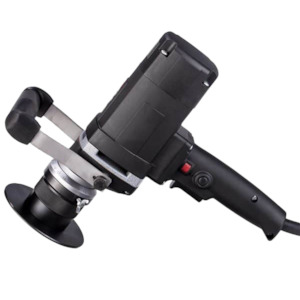

MGB45S Bevelling Machine

The Euroboor MGB45S benefits from quick and easy bevel width adjustment with clear indicator. This bevelling machine has a maximum bevel width of 6 mm, at an angle of 45°.The spindle speed adjustment range makes the MGB45S suitable for various materials. The electronic speed stabilization and overheat protection take care of creating perfect finishes with the greatest of ease.

Properties

Dimensions

maximum bevel size at 45 degrees (millimeter)

6

thread pitch (millimeter)

1.75

thread size (millimeter)

12

length (millimeter)

458

width (millimeter)

137

height (millimeter)

300

inside / minimum diameter (millimeter)

20

Properties

nett weight (kilogram)

4.8

system of measurement

mm (metric)

application

beveling

Performance

load minimum rotation speed gear 1 (rotations per minute)

1750

load maximum rotation speed gear 1 (rotations per minute)

5250

Supply

motor power (Watt)

1250

power supply current

AC

power supply type

electric

power supply tension (Volt)

220 - 240

Usage

minimum machining angle (degrees)

30

maximum machining angle (degrees)

45

minimum pipe diameter (millimeter)

20
