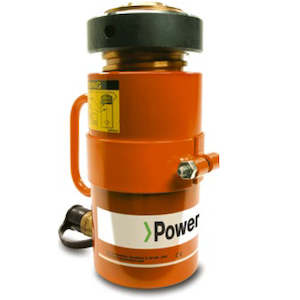

RL Series Single Acting Lock Nut Cylinders

- Capacity from 55 to 565T, stroke up to 254 mm.
- Positive mechanical locking collar to support load.
- Supports lifted load for extended periods of time with hydraulic pressure released.
- Visible indicator band alerts when stroke limit is reached. Overflow port (“weep hole") stroke limiter prevents piston from being overextended.
- All cylinders feature coated pistons to resist corrosion and abrasion.
- Complies with ANSI / ASME B30.1 safety standards.
