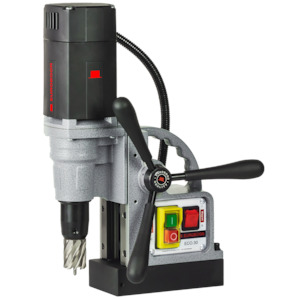

Magnetic Drill - ECO.30 - Single Speed

The Euroboor ECO.30 is the lightest ø 30 mm machine in the market. Due to its small size the Euroboor ECO.30 is the ideal magnetic core drilling machine to drill holes in tight and narrow spaces. This machine measures barely 27.5 cm in length and weighs only 8.5 kg. With a power of 900 W this small ECO.30 magnetic core drilling machine cuts holes in metal easily and quickly.

Hytools are Agents for Euroboor Magnetic Drills in New Zealand. Our capabilities include:

- Service
- Repair
- Spare parts
- Sales
- Hire Connection minimum diameter annular cutters (millimeter) 12 maximum diameter annular cutters (millimeter) 30 minimum diameter countersinking (millimeter) 10 maximum diameter countersinking (millimeter) 35 minimum diameter twist drills (millimeter) 1 maximum diameter twist drills (millimeter) 13 connection 1 model inside connection 1 size (millimeter) 19.05 connection 2 morse taper / drill chuck class B16 connection 1 type Weldon Dimensions stroke (millimeter) 90 magnet length (millimeter) 160 magnet width (millimeter) 80 magnet height (millimeter) 37 minimum height (millimeter) 293 maximum height (millimeter) 383 length (millimeter) 275 width (millimeter) 190 height (millimeter) 383 diameter pilot pin hole (millimeter) 6.35 Properties rotation direction clockwise magnetic force (kilogram) 1200 electric rotation speed adjustment no nett weight (kilogram) 8.5 system of measurement mm (metric) application drilling, countersinking Performance no-load rotation speed gear 1 (rotations per minute) 775 load rotation speed gear 1 (rotations per minute) 400 Supply motor power (Watt) 900 total power (Watt) 950 power supply frequency (Hertz) 50 - 60 power supply current AC power supply connection EU plug according CEE 7/7 power supply source mains supply power supply type electric power supply tension (Volt) 220 - 240
