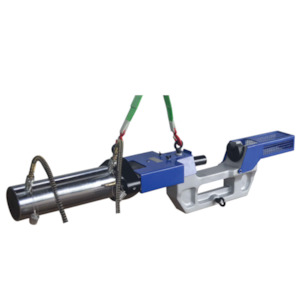

150 Ton Track Link Pin Press

Maintenance is essential for construction, mining, and other industries that require heavy lifting and movement of materials. Excavators, bulldozers, and other heavy machines rely on tracks to move around, and these tracks require maintenance and repairs over time. One of the most critical aspects of track maintenance is the removal and replacement of track pins.

A Track Pin Press is a hydraulic tool designed to remove and install track pins quickly and efficiently. It is an essential tool for heavy equipment maintenance and repairs.

Stroke length 350mm.
Removal & installation of track link pins and bushes.
Maintenance of track chains in workshop and on sites.
Suitable for all brands of earth moving equipment.
Pumping units optional and sprocket puller. ---

Frame Specifications

Capacity

Stroke

Model

Overall Length (A)

Width (B)

Height (C)

Wt. (Aprox)

Suitable Hand pump

Suitable Power Pack (optional)

Ton (kN)

(mm)

MT

(mm)

(mm)

(mm)

(kg)

Model

Model

150(1589)

350

TPP-150-350

2103

410

533

390

MTSHP- 2P4-2-13000-G-E

MTPPU002053 /MTPPU002061

PIN Dimensions

Max. Diameter (mm)

MT-TPP 150-350

22-70
