EcoLoc RingsFeatures:- An economical way to connect steel ducts & Fittings together- 80-400mm⌀ range- Ridged & strong connection- Manufactured from plated steel for corrosion resistance- Suitable for indoor and outdoor use- Reusable allowing for easy duct system reconfigurations

Floor SweepFeatures:- Used to suck away floor sweepings into an extraction system- Manufactured from 1.6 & 2.0mm thick galvanised steel sheet- Heavy duty construction & hinge for long term durability- Laser cut parts, laser welded together for high quality- integrated hold down points

sFeatures:- Manufactured from 1.0mm thick galvanized steel sheet- Stocked up to 600mm⌀. Larger sizes available on request- Ensures 'unimpeded vertical discharge' as required by most local authorities for compliance with discharge to atmosphere regulations- internal cone drains water through integr...

sFeatures:- Manufactures from 1.00mm thick galvanized steel sheet- Stocked up to 600mm ⌀. Larger sizes available on request- Laser cut bird stop mesh- Prevents water ingress into a vertical discharge stack

IES TechnologiesDiameter Range: Ø80–450 mmMaterial: Galvanized SteelThe IES Technologies designed to effectively remove large wood chips and other coarse particles from ventilation airstreams. Installed within ducting systems, it utilizes internal deflectors to redirect heavier debris downward in...

sFeatures:- laser cut from galvanized sheet (3mm) and mild steel (5mm)- s are made to suit our standard dimensions and match in our range i.e. fans and duct collectors- Electro-galvanized finish for corrosion protection- Other PCD and flange dimensions available on request

Nitrile GasketsFeatures:- Used as a sealing alternative to silicone sealer or foam tape in flanged connections- Made from 3mm nitrile rubber. A good sealing option for oil mist extraction systems- sized to match our standard flanges- Other PCD and flange dimensions available on request

sFeatures:- Manufactured from 1.6mm galvanized high tensile steel- QuickLoc edge matches our duct, bends, fittings & clamp ranges- Can be welded to a hopper/machine to allow a duct to be connected

sFeatures:- Manufactured from galvanized high tensile steel. 0.75mm thick 80-300mm⌀, 0.95mm for >300mm⌀- Allows connection of flexible duct to steel duct- Specially sized to fit EASILY into our flexible duct range- Rolled swage to stop flex slipping off the spigot

sFeatures:- Manufactured from 1.0mm & 1.6mm galvanized steel- Pressed & spot-welded construction- Used to modulate airflow in a duct - not suited for shutting off airflow in a duct (use slide dampers to shut-off airflow in ducts)- QuickLoc edges match our duct, bends, fittings & clamp ranges- Ex-sto...

EPDM Foam TapeFeatures:- 20mm wide x 3mm thick EPDM- Closed cell for air and water tightness- Sold per m (min order quantity 5m)- Self-adhesive backing with scrim reinforcement- Excellent alternative to silicone sealer for between flanges, especially if you need to be able to take the flanges apart...

Features:- M8 x 20 and M10 x 25 zinc plated- Sold in boxes of 50- Zinc plated for corrosion resistance- Bolt and nut included- Fully threaded, 8.8 high tensile- Use with our flanged connections

Galvanized Wire Suspension RopeFeatures:- 3mm⌀ Galvanized steel wire rope- 7x 19 multi-core, minimum breaking load 0.59t- Use with our cable locks for an adjustable suspension solution- A quick & economical solution for the suspension of a duct system from overhead structures- Available per m, 25m...

sFeatures:- Seismically rated for use with 3.0 - 5.0mm⌀ wire- Max load range per wire lock is 291kg. Safety factor for 5:1- Constructed from a combination of sintered & stainless steel for corrosion resistance- Lock and release pin allows for easy adjustment of suspension wire length so that the d...

sFeatures:- An easy way to connect threaded rods to steel beams- Cast iron, electro-galvanised finish of corrosion protection- Constructed from a combination of sintered & stainless steel for corrosion resistance

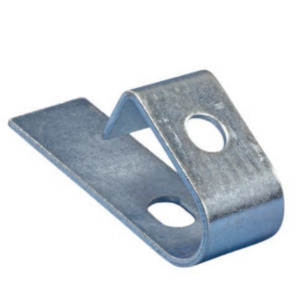

sFeatures:- A cost-effective solution for connecting threaded rod to a steel purlin- Zinc plated finish for corrosion protection- Uses the compression of the threaded rod nut to clamp to the flange (max thickness 4mm)- Used with 10mm threaded rod

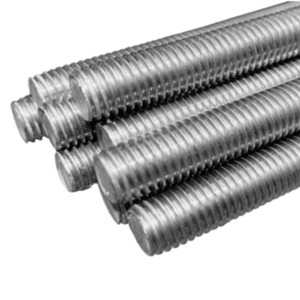

Features:- M8 & M10 continuous threaded rod- Available in 1m and 3m lengths- Zinc plated for corrosion protection

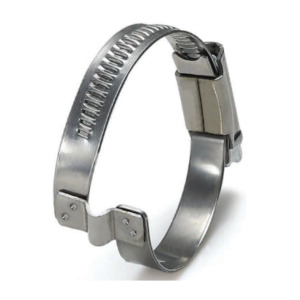

Eco - Bridge Style ClipsFeatures:- Manufactured from stainless steel- 85-155mm⌀ range- Better than traditional hose clips & specifically designed for our polyurethane flexible duct range

IES Technologies Duct SilencerDiameter Range: Ø250–750 mmLength: 1500 mmMaterial: Galvanised SteelThe IES Technologies Duct Silencer is engineered to reduce noise generated by airflow in ventilation systems, while ensuring smooth and efficient air movement. Designed without internal baffles, this...

s- M8 or M10- Sold in boxes of 50

- M8x19 or M10x21- Sold in packs of 100

Heavy Duty - High Torque ClipsFeatures:- Manufactured from zinc plate & stainless steel- High torque drive allows for excellent clamping force- Excellent for higher air pressures & movement applications, i.e. CNC routers
