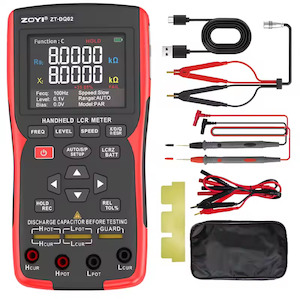

Zoyi DQ-02 LCR Meter and Battery Analyser

Firmware Upgrade

Via USB (TYPE-C)

Package Includes:

- Zoyi ZT-DQ02 LCR Meter
- 4-wire Kelvin Clips (for LCR measurement)
- Aviation Plug Clips (for battery measurement)
- Multimeter Test Leads
- TYPE-C Data Cable
- User Manual
- Soft case

Important Safety & Usage Notes:

- Discharge capacitors before LCR measurement.
- Do not apply voltage to the LCR input ports.
- Ensure battery voltage does not exceed DC 100V for internal resistance tests; AC voltage is prohibited.
- Use the correct input ports for LCR and battery measurements to avoid damage.
- Pay attention to polarity and avoid short circuits when measuring batteries.
