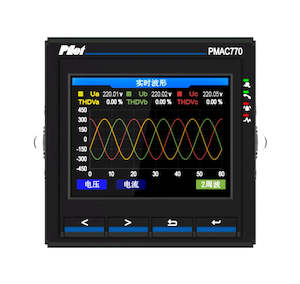

Pilot PMAC770H Power Quality Analyser

The PMAC770H is a multi-functional power meter designed for professionals to analyze and monitor three-phase power systems. It offers high-precision measurement, comprehensive power quality analysis, and various data recording capabilities.

Key Features

Measurement: Voltage (up to 690kV), current (up to 50kA), active/reactive/apparent power, power factor, frequency.

Power Quality Analysis:

Harmonics (up to 63rd order)

Voltage and frequency deviation

Voltage imbalance

Flicker

Voltage swell/sag/interruption

Energy Measurement: Full-wave, bi-directional, four-quadrant, multi-tariff, historical data.

Demand: Real-time, historical, multi-tariff, forecast.

Recording: SOE events, PQ events, waveform recording. Feature Specification Accuracy Voltage: 0.1% Current: 0.1% Active Power: 0.2% Reactive Power: 0.5% Frequency: 0.01Hz Input 3P4W, 3P3W Digital Input 3 active inputs standard, up to 11 optional Relay Output Up to 6 Analog Output 4-20mA (optional) Pulse Output Available for active and reactive energy Mounting Panel-mount (96x96mm) Operating Temperature -20°C to 60°C Storage Temperature -40°C to 85°C Humidity 5% to 95% (non-condensing)

Communication RS485 (standard), optional Ethernet and RS485.

Display TFT color LCD (320x240 resolution)

Note: Optional features and expansion modules are available to enhance the of the PMAC770H. Please inquire for customization options to meet your specific needs.
