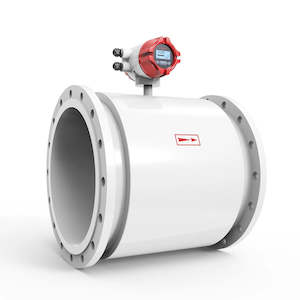

Supmea Magnetic Flowmeter FMC240-M1 (Compact style DN15~DN1000)
The FMC240 Electromagnetic Flow Meter from Supmea is a cutting-edge solution designed to provide accurate and reliable flow measurement across a wide range of industrial applications. With its advanced features, robust construction, and versatile configuration options, the FMC240 is the ideal choice for industries such as sewage treatment, printing and dyeing, chemical processing, environmental protection, metallurgy, medicine, papermaking, and tap water supply.
The most common have been listed. Larger sizes (upto DN1000), and special materials of construction (platinum electrodes ) available on request.
Typical lead time is 3-weeks from time of order.
Key Features and Benefits:
- Unmatched Accuracy: The FMC240 boasts a high accuracy of ±0.5% F.S, ensuring precise flow measurement for critical processes.
- Bi-Directional Measurement: Measure fluid flow in both forward and reverse directions, providing flexibility in various applications.
- RS485 Modbus Communication: Seamlessly integrate the FMC240 into your existing industrial automation systems with RS485 Modbus communication.
- Flexible integration: Standard 4-20mA analog output and quantitative flow or PWM flow rate pulse output (square wave) enables easy integration with various control systems and data acquisition devices.
- No Moving Parts: The FMC240's electromagnetic design eliminates moving parts, ensuring long-term reliability and reducing maintenance requirements.
- Wide Range of Applications: The FMC240 is compatible with a variety of electrically conductive fluids, including aggressive acids, making it suitable for diverse industries.
- Compact and Remote Configurations: Choose between compact and remote configurations to suit your specific installation needs.
- Customizable Options: The FMC240 offers a range of customizable options, including flange materials, electrode materials, and lining materials, to meet your specific application requirements. Technical Specifications: Feature Specification Construction Standard JB/T9248-2015 Measuring Principle Faraday's law of electromagnetic induction Nominal Diameter DN10-DN1000 Flange In line with JB/T9248-2015 standard carbon steel (Optional stainless steel flanges), other standard flange can be customized Pressure Rating DN15-DN250, PN≤1.6MPa; DN300, PN≤1.0MPa (High pressure can be customized) Lining Material Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA Electrode Material 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt Ingress Protection IP65 for converter, IP68 for sensor Medium Temperature Neoprene: -10℃~70℃; Polyurethane: -10℃~60℃; PTFE/FEP: -10℃~120℃; PFA: -10℃~180℃ Serial Communications Modbus RS-485 Output Current (4~20 mA), pulse, frequency Display Function 2 measurement value pictures (measurements, condition, ) Language English/Chinese Max Measuring Error Measurement value ±0.5% (Flow speed >0.5m/s); Measurement value ±0.5% ±2mm/s (Flow speed
