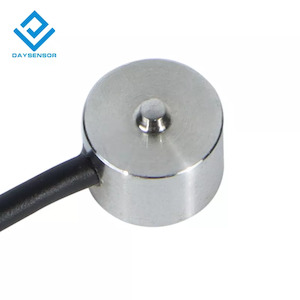

DYHW-108 8mm Ø Miniature Load Cell (3-100 kg)

The DYHW-108 Miniature Load Cell is an 8mm diameter compact and high-precision force sensor designed for various applications where space is limited and accurate measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing. Key Features

- Compact Size: 8mm diameter design for applications with limited space constraints.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.
- Versatile Applications: Suitable for various industries and research fields, including measurement and control of force, automation equipment, and key force analysis.
- Fast Response Speed: Ensures quick and accurate measurements for dynamic applications.
- Long Service Life: Designed for extended use and reliable performance.
- Strong Anti-Interference Ability: Provides stable and accurate measurements even in the presence of interference. Technical Specifications Parameter Value Range 1-100 kg Material Stainless Steel Output Sensitivity 3-5kg: 0.5-1.0mV/V; 10-100kg: 1.0-1.5mV/V Impedance 350 Ω Zero point output ± 2 %FS Non-linearity 0.5 %FS Hysteresis 0.3 %FS Repeatability 0.3 %FS Creep (30 min) 0.2 %FS Temperature Sensitivity Drift 0.5 %FS / 10 °C Zero point Temperature Drift 0.5 %FS / 10 °C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 10 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 120% Extreme Overload 150% Cable 5 core x 1m Cable Limit Tension 10 kg Response Frequency 10 kHz TEDS Selectable Dimensions

Model Range (kg) Φ H H1 DYHW-108-H6.5 3-30 8 6.5 5.5 DYHW-108-H6.5 50-100 8 6.5 5.5 DYHW-108-H3.5 3-10 8 3.5 3 DYHW-108-H3.5 20-30 8 3.5 3
