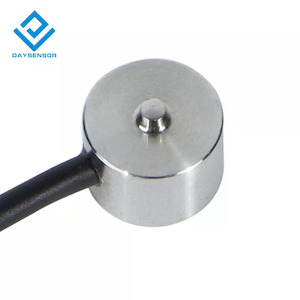

DYHW-110 10mm Ø Miniature Load Cell (5-100 kg)

The DYHW-110 Miniature Load Cell is a compact and high-precision force sensor with a 10mm diameter, designed for various applications where space is limited and accurate measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing. Key Features

- Compact Size: 10mm diameter design for applications with limited space constraints.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.
- Versatile Applications: Suitable for various industries and research fields, including measurement and control of force, automation equipment, and key force analysis.
- Fast Response Speed: Ensures quick and accurate measurements for dynamic applications.
- Long Service Life: Designed for extended use and reliable performance.
- Strong Anti-Interference Ability: Provides stable and accurate measurements even in the presence of interference. Technical Specifications Parameter Value Range 1-100 kg Material Stainless Steel Output Sensitivity 1.0-2.0mV/V Impedance 350/500 Ω Zero point output 2 %FS Non-linearity 0.5 %FS Hysteresis 0.5 %FS Repeatability 0.3 %FS Creep (30 min) 0.1 %FS Temperature Sensitivity Drift 0.5 %FS / 10 °C Zero point Temperature Drift 0.5 %FS / 10 °C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 10 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 120% Extreme Overload 200% Cable 5 core x 1m Cable Limit Tension 10 kg Response Frequency 10 kHz TEDS Selectable Dimensions

Model Range (kg) H H1 DYHW-110-H6 3-10 6 5.2 DYHW-110-H6 20-30 6 5.2 DYHW-110-H6 50-100 6 5.5 DYHW-110-H3.5 3-10 3.5 3 DYHW-110-H3.5 20-30 3.5 3
