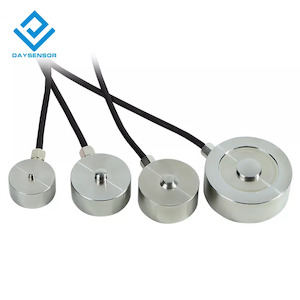

DYHW-116 Miniature High-Capacity Load Cell (3 kg - 5 ton)

The DYHW-116 Miniature Load Cell is a compact and versatile force sensor designed for applications where space is limited and accurate measurement is crucial. This load cell offers a wide range of capacities, from 3 kg to 5 tons, making it suitable for various industrial and research applications. Key Features

- Compact Size: Miniature design for easy integration into space-constrained applications.
- Wide Capacity Range: Measures a broad spectrum of forces, from 3 kg to 5 tons.
- Durable Construction: Made of stainless steel with IP65 protection grade for reliable performance in various environments.
- Versatile Applications: Suitable for various industries and research fields, including robotics, material testing, and automation equipment.
- High Accuracy: Provides precise and stable force measurements.
- Fast Response Speed: Ensures quick and accurate measurements for dynamic applications. Technical Specifications Parameter Value Range 3 kg - 5 ton Material Stainless Steel Output Sensitivity 1.0-2.0 mV/V Impedance 700/1000 Ω Zero point output 1 %FS Non-linearity 0.3 %FS Hysteresis 0.3 %FS Repeatability 0.3 %FS Creep (30 min) 0.1 %FS Temperature Sensitivity Drift 0.3 %FS / 10 °C Zero point Temperature Drift 0.3 %FS / 10 °C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 10 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 150% Extreme Overload 200% Cable 3 x 2m (3kg - 5T), 5 x 2m (10T) Cable Limit Tension 10 kg Response Frequency 10 kHz TEDS Selectable
Dimensions

Range ΦA ΦC H E M H1 SR 3-200 kg 20 15.5 12 10 M3 4 2 300-500 kg 30 26 18.5 15 M4 5 6 1-2 T 30 26 18.5 15 M4 5.5 20 3-5 T 50 37.7 31 15.5
4 50
