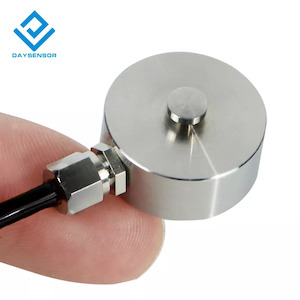

DYHW-120 Robot Grip Strength Miniature Load Cell (5 - 2000 kg)

The DYHW-120 Miniature Load Cell is a compact and high-precision force sensor with a 20mm diameter, designed for various applications where space is limited and accurate measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing. Key Features

- Compact Size: 20mm diameter design for applications with limited space constraints.
- High Capacity: Measures a wide range of forces, from 5 kg to 2 tons.
- Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.
- Versatile Applications: Suitable for various industries and research fields, including measurement and control of force, automation equipment, and key force analysis.
- Fast Response Speed: Ensures quick and accurate measurements for dynamic applications.
- Long Service Life: Designed for extended use and reliable performance.
- Strong Anti-Interference Ability: Provides stable and accurate measurements even in the presence of interference. Technical Specifications Parameter Value Range 0-2000 kg Material Stainless Steel Output Sensitivity 1.0-2.0 mV/V Impedance 1000 Ω Zero point output ± 2 %FS Non-linearity 0.3 %FS Hysteresis 0.3 %FS Repeatability 0.1 %FS Creep (30 min) 0.05 %FS Temperature Sensitivity Drift 0.3 %FS / 10 °C Zero point Temperature Drift 0.3 %FS / 10 °C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 10 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 150% Extreme Overload 200% Cable 5 core x 2m Cable Limit Tension 10 kg Response Frequency 10 kHz TEDS Selectable Dimensions

Range (kg) D B 5 20 2 10-50 20 2.5 100-200 20 3 500-1000 20 3.8
