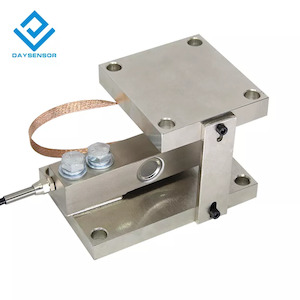

DYMK-001 Weighing Module (30 kg - 5 ton)

The DYMK-001 Weighing Module is a robust and versatile solution designed for high-precision weighing applications in various industrial settings. It is commonly used in industries such as food processing, pharmaceuticals, and chemicals, where accurate measurement of large quantities of materials is critical. This module is typically installed on silos, tanks, hoppers, and other large containers to monitor their weight and manage inventory effectively.

The DYMK-001 features a cantilever beam weighing sensor, offering simple installation and reliable performance. It is constructed from alloy steel, ensuring durability and stability in demanding environments. Key Features:

- High Capacity: Measures a wide range of weights, from 100 kg to 15 tons.
- Robust Construction: Alloy steel material provides excellent durability and stability.
- Accurate and Reliable: Cantilever beam design ensures precise and consistent measurements.
- Easy Installation: Designed for straightforward integration into various weighing systems.
- Versatile Applications: Suitable for weighing silos, tanks, hoppers, and other large containers in various industries. Technical Specifications: Parameter Value Range 0-15T Material Alloy Steel Output Sensitivity 2.0 ± 10% mV/V Zero point output 2 %FS Non-linearity 0.1 %FS Hysteresis 0.1 %FS Repeatability 0.1 %FS Creep (30 min) 0.05 %FS Temperature Sensitivity Drift 0.05 %FS / 10 °C Zero point Temperature Drift 0.05 %FS / 10 °C Impedance 350 Ω Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 10 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 120% Extreme Overload 150% Cable 5 core x 3m Cable Limit Tension 10 kg Response Frequency 10 kHz

Dimensions:

Parameter 0.1-2 T 3-5 T 10-15 T A 100 150 180 A1 80 122 140 B 110 110 140 B1 90 80 100 C 110 110 140 C1 90 80 100 L 160 228 290 L1 140 200 250 H 110 131 157.5 H1 20 26.5 30 H2 16 24.5 30 Y 13 13 22 Z 13 13 22
