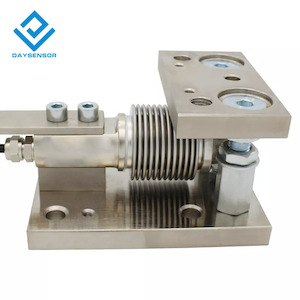

DYMK-006 Bellows Cantilever Precision Weighing Module (10 - 200 KG)

The DYMK-006 Bellows Cantilever Weighing Module is a compact and reliable solution for weighing applications in various industries, including chemical, pharmaceutical, and food processing. This module is designed for small to medium-sized weighing tasks, such as measuring ingredients in reactors and controlling processes in tanks and hoppers.

The DYMK-006 features a bellows cantilever design, providing high accuracy and stability in a compact form factor. It is constructed from stainless steel or alloy steel, ensuring durability and corrosion resistance for long-lasting performance. The module is also designed for easy installation and maintenance, reducing downtime and simplifying integration into existing systems. Key Features:

- Compact Design: Ideal for applications with limited space.
- Accurate and Reliable: Bellows cantilever design ensures precise and consistent measurements.
- Durable Construction: Stainless steel or alloy steel material provides excellent corrosion resistance and longevity.
- Easy Installation: Designed for straightforward integration into various weighing systems.
- Versatile Applications: Suitable for weighing reactors, tanks, hoppers, and other containers in various industries. Technical Specifications: Parameter Value Range 0-500kg Material Stainless Steel / Alloy Steel Output Sensitivity 2.0 ± 0.002 mV/V Zero point output ± 1 %FS Non-linearity 0.3 %FS Hysteresis 0.3 %FS Repeatability 0.3 %FS Creep (30 min) 0.1 %FS Temperature Sensitivity Drift 0.1 %FS / 10 °C Zero point Temperature Drift 0.1 %FS / 10 °C Impedance 350 Ω Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 15 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 150% Extreme Overload 200% Cable 5 core x 3m Cable Limit Tension 10 kg Response Frequency 10 kHz

Dimensions
