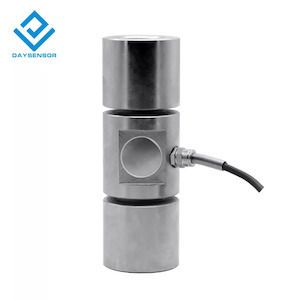

DYZ-014 Large Capacity Column Type Load Cell (20-100 ton)

The DYZ-014 Column Type Load Cell is a versatile and robust force sensor designed for various weighing applications in industrial settings. Its simple structure, high accuracy, and reliable performance make it an ideal choice for a wide range of applications, including electronic weighing equipment and pull pressure detection equipment.

Key Features:

- Simple Structure: Cost-effective and easy to integrate.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel for reliable performance in various environments.
- Versatile Applications: Suitable for various industries and applications, including pressure equipment, mobile phone assembly, and small pressure platforms.
- Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell.

Technical Specifications: Parameter Value Range 0-30T Material Stainless Steel Output Sensitivity 1.0-2.0 ± 0.05 mV/V Impedance 350Ω Zero point output 1%FS Non-linearity 0.1%FS Hysteresis 0.1%FS Repeatability 0.05%FS Creep (30 min) 0.05%FS Temperature Sensitivity Drift 0.05%F.S./10°C Zero point Temperature Drift 0.05%F.S./10°C Insulation Resistance ≥5000MΩ/100VDC Service voltage 5-15V Operating Temperature Range -20-80°C Safe overload 150% Extreme overload 200% Cable line specifications Φ5x3m Cable limit tension 10kg Response frequency 10kHz

Dimensions:
