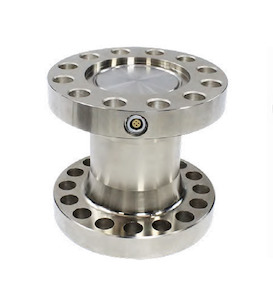

DYZ-015 Large Capacity Column Type Load Cell (30-2500 ton)

The DYZ-015 Column Type Load Cell is a robust and high-precision force sensor designed for heavy-duty weighing applications in various industrial settings. Its compact structure and high accuracy make it an ideal choice for a wide range of applications, including rail weighbridges, bucket scales, platform scales, and other electronic weighing equipment. Key Features

- Robust Construction: The upper and lower flanges are fixed, ensuring a compact and stable structure.
- High Accuracy: Provides precise and reliable force measurements with good long-term stability.
- Durable Material: Made of high-quality alloy steel with nickel plating for enhanced durability and corrosion resistance.
- Versatile Applications: Suitable for various industries and applications, including rail weighbridges, bucket scales, and platform scales.
- Easy Installation: Designed for straightforward integration into various systems. Technical Specifications Parameter Value Range 0-2500T Material Alloy Steel Output Sensitivity 2.0mV/V Impedance 780Ω Zero point output 1%FS Non-linearity 0.2%FS Hysteresis 0.1%FS Repeatability 0.1%FS Creep (30 min) 0.1%FS Temperature sensitivity drift 0.05%F.S./10°C Zero point Temperature drift 0.05%F.S./10°C Insulation Resistance ≥5000MΩ/100VDC Service voltage 5-15V Operating Temperature Range -20-80°C Safe overload 120% Extreme overload 150% Cable line specifications Φ5x3m Cable limit tension 10kg Response frequency 10kHz
Dimensions
