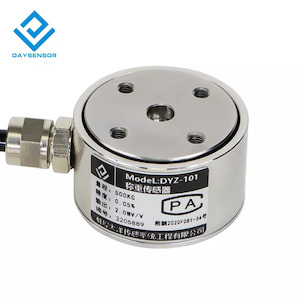

DYZ-101 Miniature Column Load Cell (1-2000kg)

The DYZ-101 Miniature Column Load Cell is a compact and versatile force sensor designed for applications where space is limited and precise measurement is essential. Its low height and large contact area make it ideal for various industrial and research applications, including pressure equipment, mobile phone assembly, and small pressure platforms. Key Features

- Compact Size: Miniature design for easy integration into space-constrained applications.
- Wide Capacity Range: Measures a broad spectrum of forces, from 1 kg to 2000 kg.
- Durable Construction: Made of stainless steel with IP65 protection grade for reliable performance in various environments.
- Versatile Applications: Suitable for various industries and research fields, including pressure equipment, mobile phone assembly, and small pressure platforms.
- High Accuracy: Provides precise and stable force measurements.
- Easy Installation: Designed for straightforward integration into various systems. Technical Specifications Parameter Value Range 0-2000 kg Material Stainless Steel Output Sensitivity 2.0 ± 0.05 mV/V Impedance 350 Ω Zero point output 2 %FS Non-linearity 0.05 %FS Hysteresis 0.03 %FS Repeatability 0.03 %FS Creep (30 min) 0.03 %FS Temperature Sensitivity Drift 0.03 %FS / 10 °C Zero point Temperature Drift 0.05 %FS / 10 °C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 10 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 150% Extreme Overload 200% Cable 5 core x 2m Cable Limit Tension 10 kg Response Frequency 10 kHz TEDS N/A Dimensions

Diameter (Φ) Height (H) 41.2 mm 25 mm
